Create Open Metadata service

To create an Open Metadata service, follow these steps:

Step 1: In the menu bar, select Data Platform > Workspace Management > Workspace name

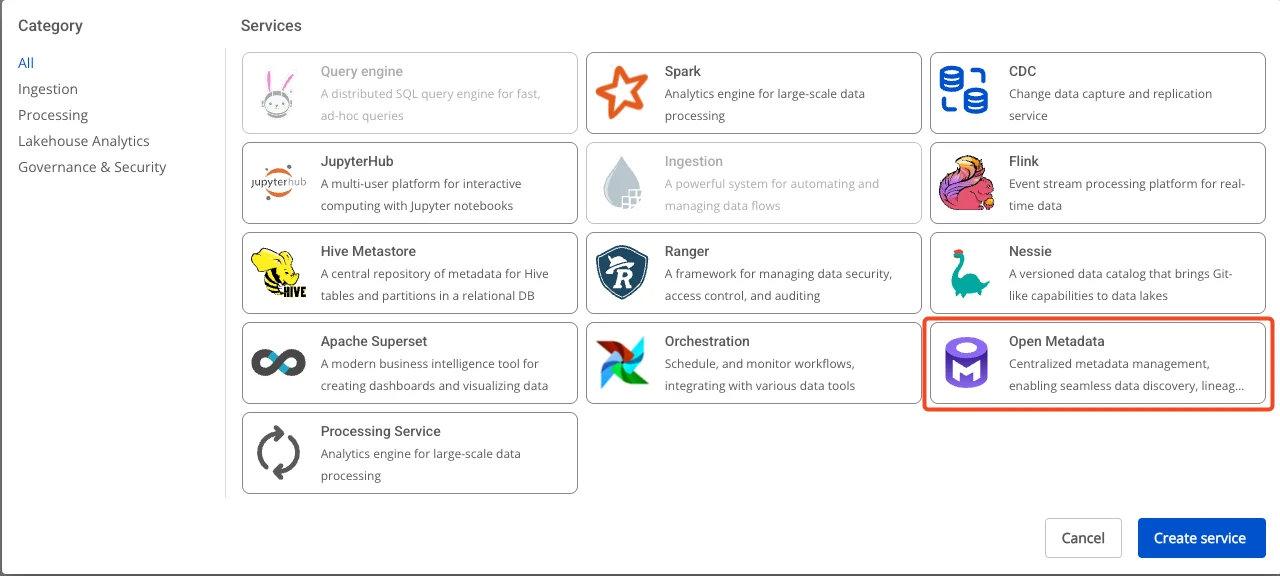

Step 2: In the My services section, click Create > the New service popup appears, select Open Metadata > Create

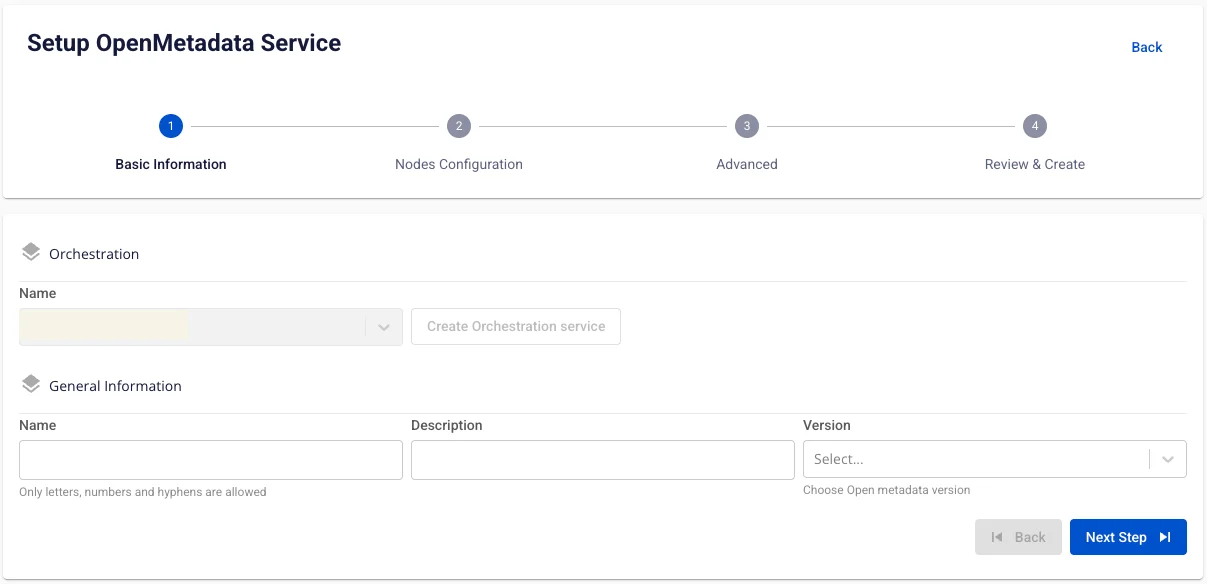

Step 3: In the Open Metadata creation form, enter the Basic Information:

• Orchestration service name (required): Select the Orchestration service that will orchestrate Spark Job operations

• Name (required): Service name

Note: The service name may contain lowercase letters a-z, uppercase letters A-Z, or digits 0-9. Spaces are not allowed — use "-" or "_" instead.

• Description (optional): Service description

• Version (required): Service version

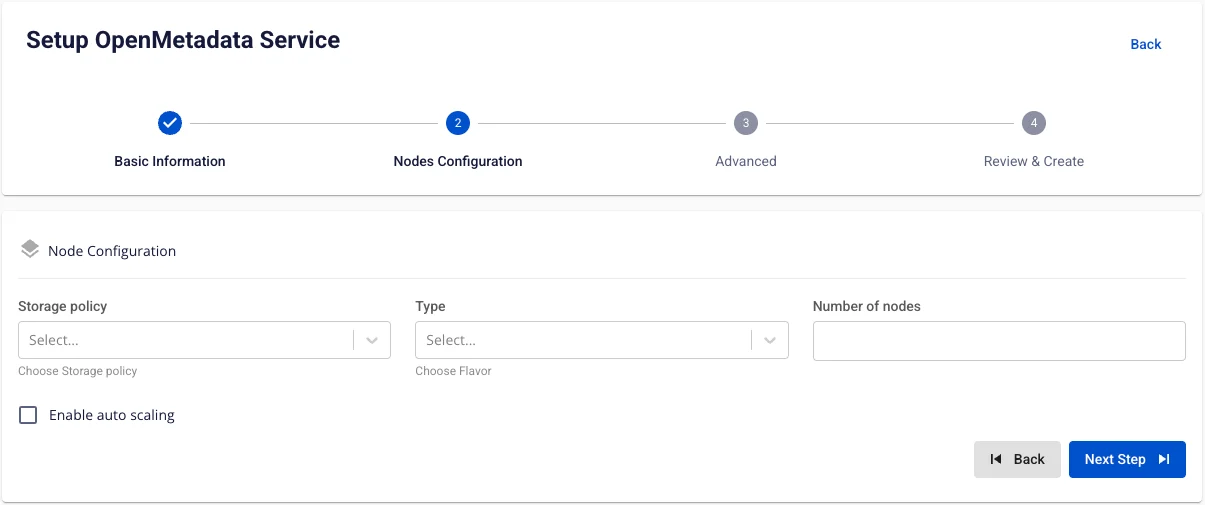

Step 4: Click Next Step to proceed to the Nodes Configuration screen

Enter the following information:

• Storage policy: Select a Storage policy

• Disk size: Select disk configuration size

• Type: Select flavor

• Number of nodes: Enter the number of nodes

warning

The number of nodes must be greater than or equal to 1.

To enable auto-scaling, check Enable auto scaling and enter the desired number of nodes

warning

The scaled number of nodes must be greater than Number of nodes.

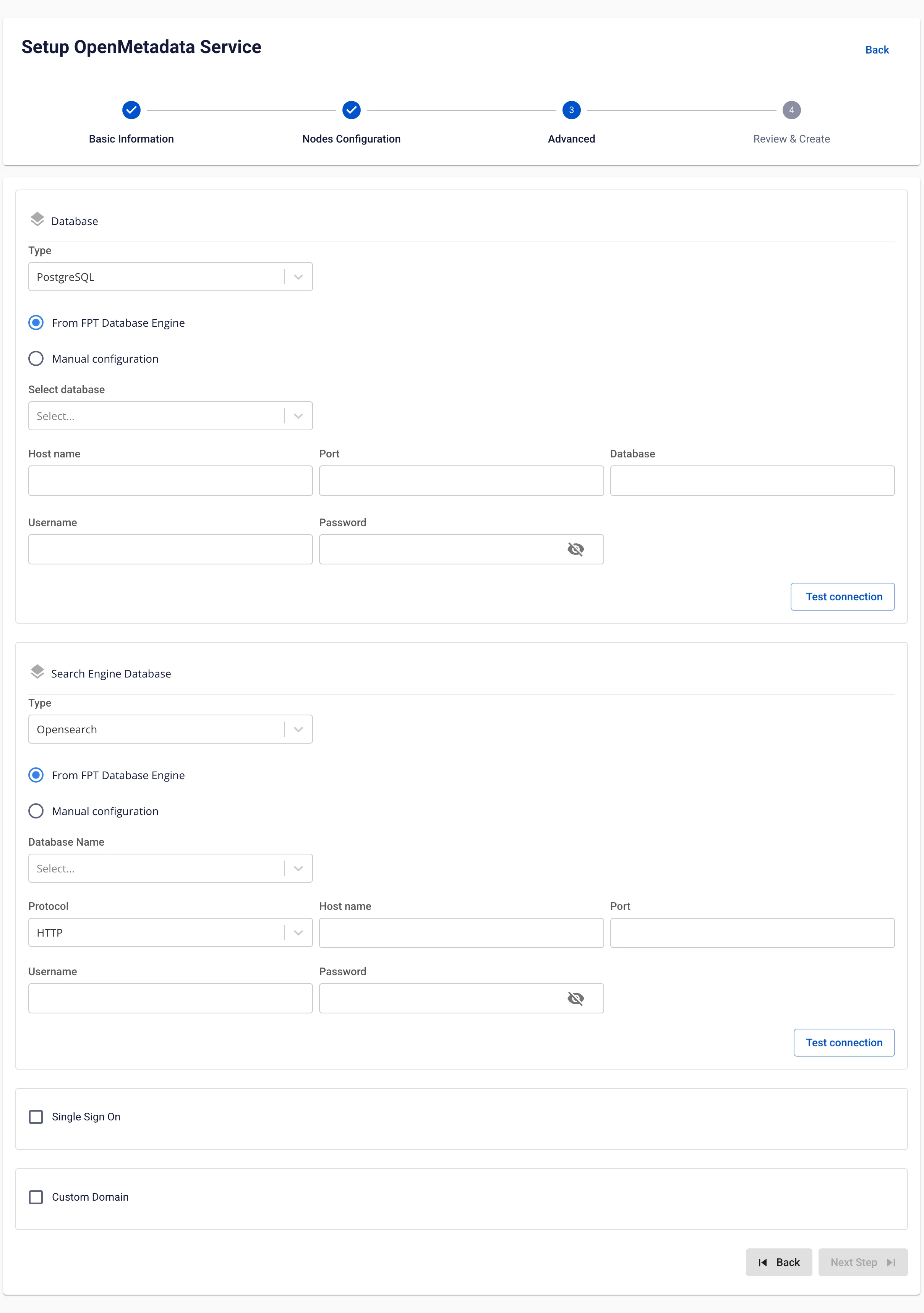

Step 5: Click Next to proceed to the Advanced screen

• Database (Database information for storing Data governance data — users can use a Database created in the FPT Database Engine service or any other Database)

When type is PostgreSQL:

* **Select Database** (required): Select Database

* **Host name** (required): Hostname or IP of the Postgres server

* **Port** (required): Postgres server port, default is 5432

* **Database** (required): Database name

* **Username** (required): Account name for accessing the Database

* **Password** (required): Password for accessing the Database

When Manual configuration is selected:

* **Host name** (required): Hostname or IP of the Postgres server

* **Port** (required): Postgres server port, default is 5432

* **Database** (required): Database name

* **Username** (required): User for accessing the Database

* **Password** (required): Password for accessing the Database

After entering all Database information, click Test connection to verify the connection from the Workspace to the configured Database

• Search Engine Database

  • Type (required): Opensearch or Elasticsearch

  • Database (required): Database name

  • Protocol (required): Select http or https

  • Host name (required): Access address

  • Port (required): Connection port

  • Username (required): Account name

  • Password (required): Password

  • Index (required): Index

Click Test connection to verify the connection from the Workspace to the Search Engine Database

• Single Sign On

  • If Single Sign On is not enabled, the service is initialized with Basic authentication

  • If Single Sign On is enabled:

  • Provider: FPT ID — Enter the following information:

    • Email: FPT email address

  • Provider: Google — Enter the following information:

    • Client ID: An ID code used to authenticate the client with Google

    • Client Secret: Password used to authenticate the client with Google

    • Email: Email address

  • Provider: Keycloak — Enter the following information:

    • Auth Provider name: Provider name

    • Realm: A management space in which all users, groups, roles, clients, and other objects are managed and secured independently

    • Auth server url: The base URL of the Keycloak server, used by clients to perform authentication

    • Client ID: An ID code used to authenticate the client with Keycloak

    • Client Secret: Password used to authenticate the client with Keycloak

    • Username: Username in Keycloak

    • Email: Email address in Keycloak

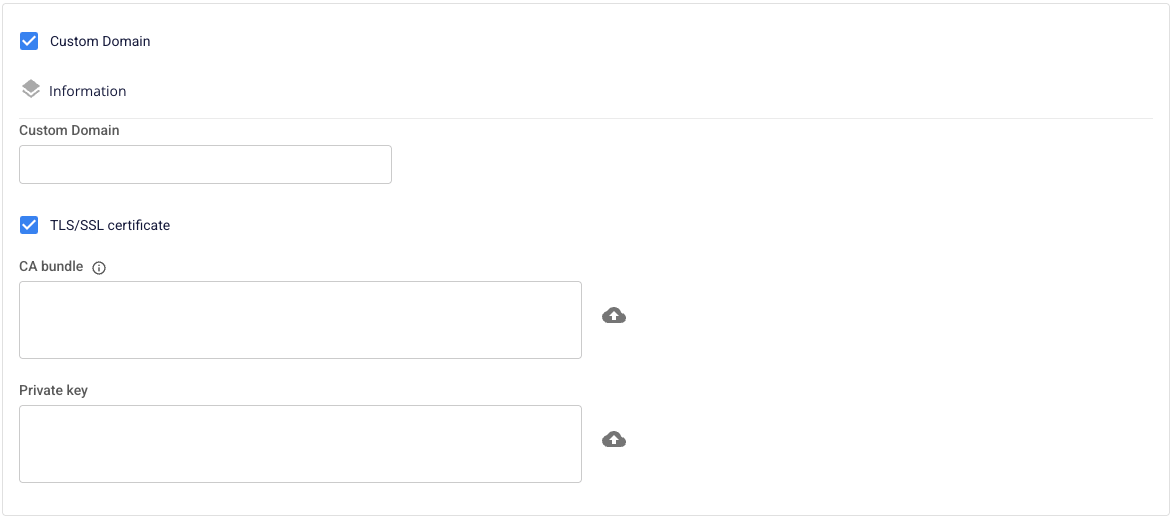

• Custom Domain:

  • Domain (required): Connection address for the Event Gateway service after initialization

    • Contains a-z, A-Z, 0-9, hyphens (-), and dots (.); maximum 100 characters

    • Domain name must not start or end with a hyphen (-) or dot (.)

    • Top level minimum 2, maximum 6 characters

    • Example: domain-name.com

  • CA bundle (required): CA certificate chain in PEM format

    • Starts with -----BEGIN CERTIFICATE----- and ends per PEM standard

  • Private key (required): Private key in PEM format

    • Starts with -----BEGIN PRIVATE KEY----- and ends per PEM standard

• Custom Domain

  • Purpose: Allows configuring a custom domain to access services.

    • For Public Workspace: Used to assign a domain and certificate without needing to enable/disable TLS (HTTPS is always available).

    • For Private Workspace: In addition to the domain and certificate, users can optionally enable or disable TLS/SSL to choose between HTTPS or HTTP.

  • Public Workspace

    • Custom domain: Check to enable a custom domain.

    • Domain: Enter the domain name (e.g., abc.local, jupyter.example.com).

    • Certificate name: Select from the list of certificates imported in Certificate Manager.

    • Buttons:

    • Manage certificate: Open the certificate management screen.

    • Validate: Verify that the certificate is valid for the domain.

note

In a Public Workspace, the TLS/SSL certificate option is not displayed — the system supports HTTPS by default.

* **Private Workspace**

  * **Custom domain**: Check to enable a custom domain.

  * **Domain**: Enter the domain name.

  * **TLS/SSL certificate**: Check to enable HTTPS for services.

  * **Certificate name**: Select from the certificate list.

  * **Buttons**:

  * **Manage certificate**: Open certificate management.

  * **Validate**: Verify the certificate.

  *

note

If TLS/SSL certificate is unchecked, the service will run over HTTP and no certificate is required.

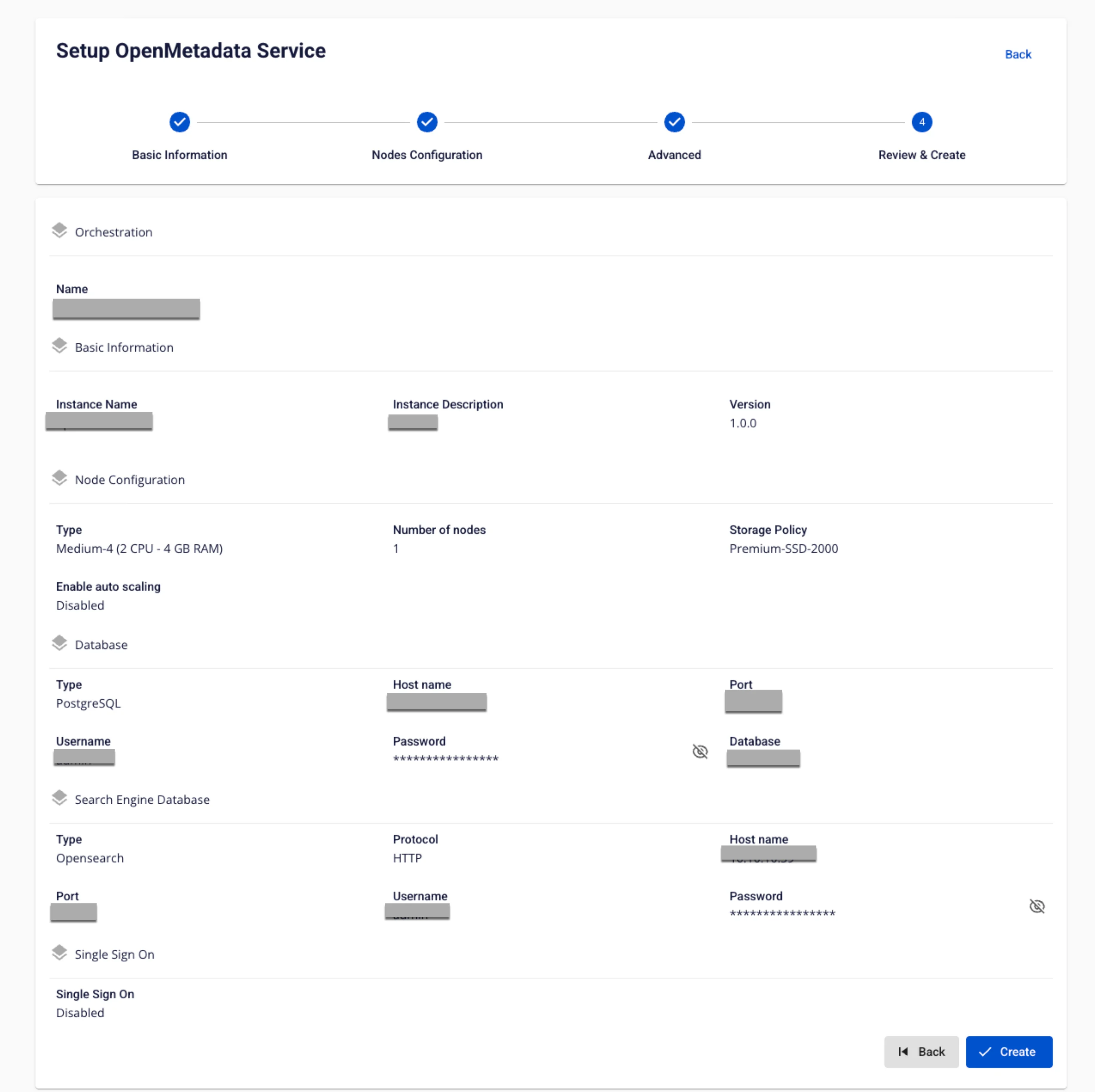

Step 6: Click Next to proceed to the Review & create screen

Step 7. Review all entered information, then click Create to complete the Open Metadata initialization

Initialization is complete when the Worker Status is Succeeded and the Open Metadata Status is Healthy (~10 minutes)
