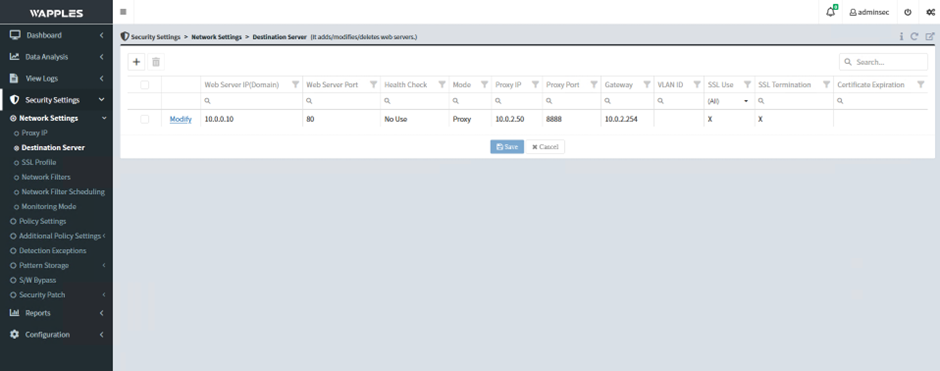

Destination Server

Mode: Proxy
Proxy IP: The configured proxy IP address
Proxy Port: The proxy port converted from the original port
Web Server IP (Domain): The IP address or domain of the web server service
Web Server Port: The service port of the web server
Health Check: Checks the status of the web server

This feature configures web services from host IPs located in the cloud.

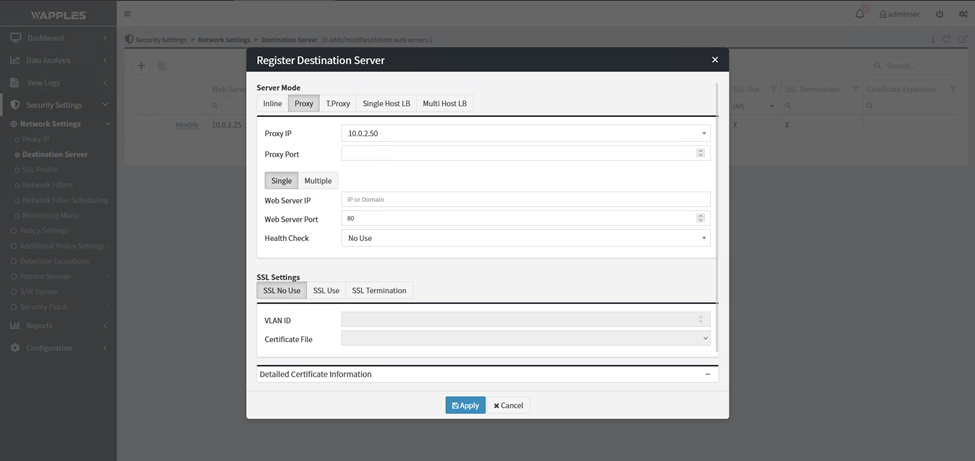

Add / Edit / Delete a Destination Server

Gateway: The configured gateway IP
VLAN ID: Displays the entered VLAN ID. Empty if SSL is not used
SSL Use: Displays X if not used, O if used
SSL Termination: Displays X if not used, O if used
Certificate Expiration: Displays the expiration date of the selected certificate when SSL is in use
