Create a new deployment

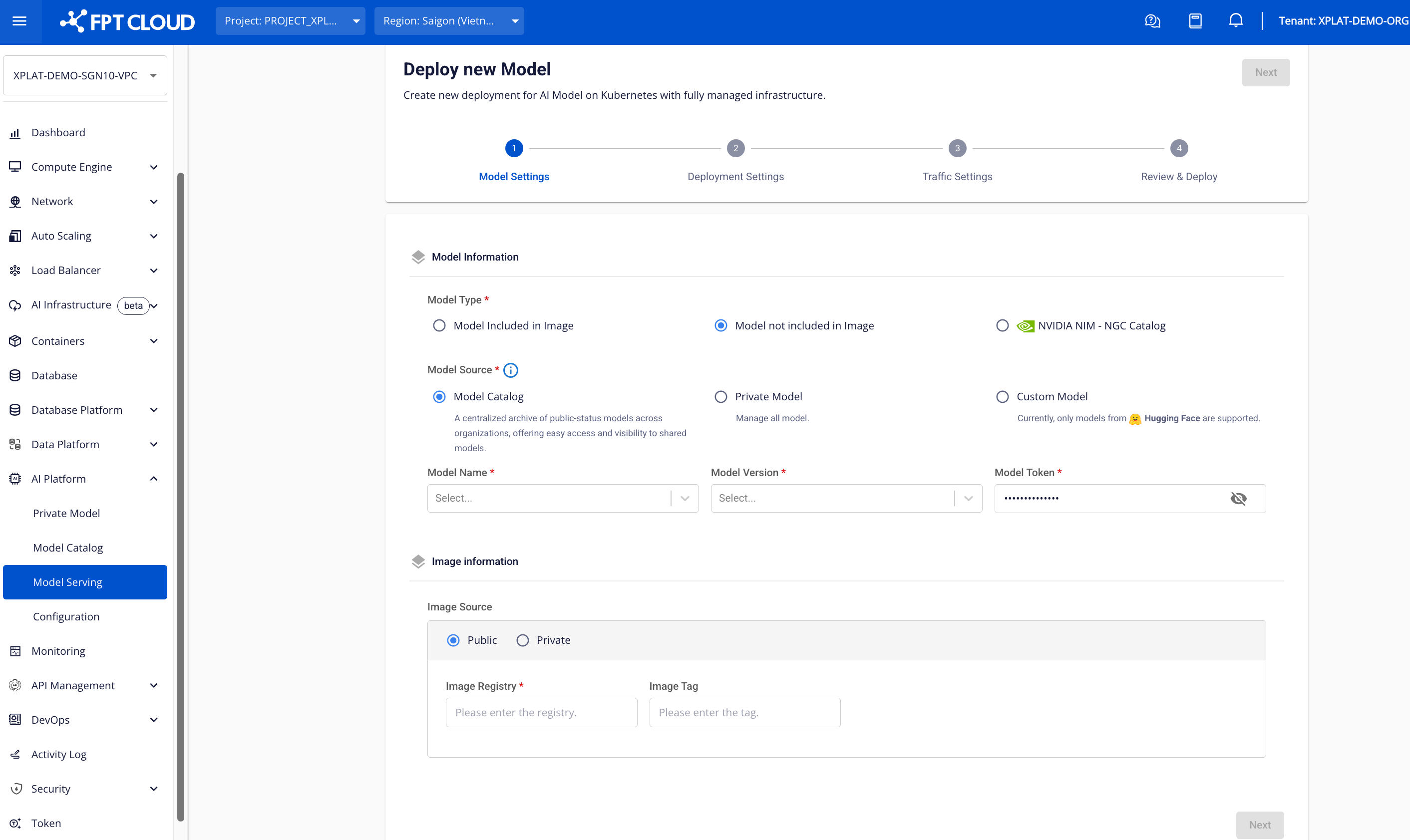

Step 1 : Select AI Platform → Model Serving → Deployment → New Deployment. Step 2 : Enter the Model Settings information, then click Next

• Model Information : AI deployment information. Select Model Type:
  • Model included in Image: AI Model included in Container Image
  • Model not included in Image: AI Model not included in Container Image
  • NVIDIA NGC Catalog: AI Model using NVIDIA NGC technology
• If Model Type is Model included in Image , select Model Source:
  • Model Source : Model selection source. Select Model Source:
    • Model Catalog : Centralized repository of public models, shared for users to use.
      • Model Name: Name of the model selected on the Model Catalog.
      • Model Version: Version of the model selected on the Model Catalog.
      • Model Token: Token authenticated with the Model Catalog for deployment (Create token by: on the home page interface, selectToken → Create)
    • Private Model : Private repository of users, can be used internally within the organization.
      • Model Name: Name of the model selected on Private.
      • Model Version: Version of the model selected on Private Model.
      • Model Token: Token authenticated with Private Model to deploy (Create token by: on the home page interface, select Token → Create)
    • Custom Model : Custom model on the Internet, currently only supporting Hugging Face models.
      • Model URL: Path to the custom model
      • Model Token: User authentication token on the platform of the selected Custom Model (e.g., Hugging Face)

If you select Model Type as Model included in Image or Model not Included in Image , select Image Information:

• Image Information : Container Image deployment information. Enter Image information:
  • Image Source: Select Image type Public (no need to enter user/password) or Private (need to enter user/password)
  • Image Registry: Link to the container image storage location.
  • Image Tag: Container image version

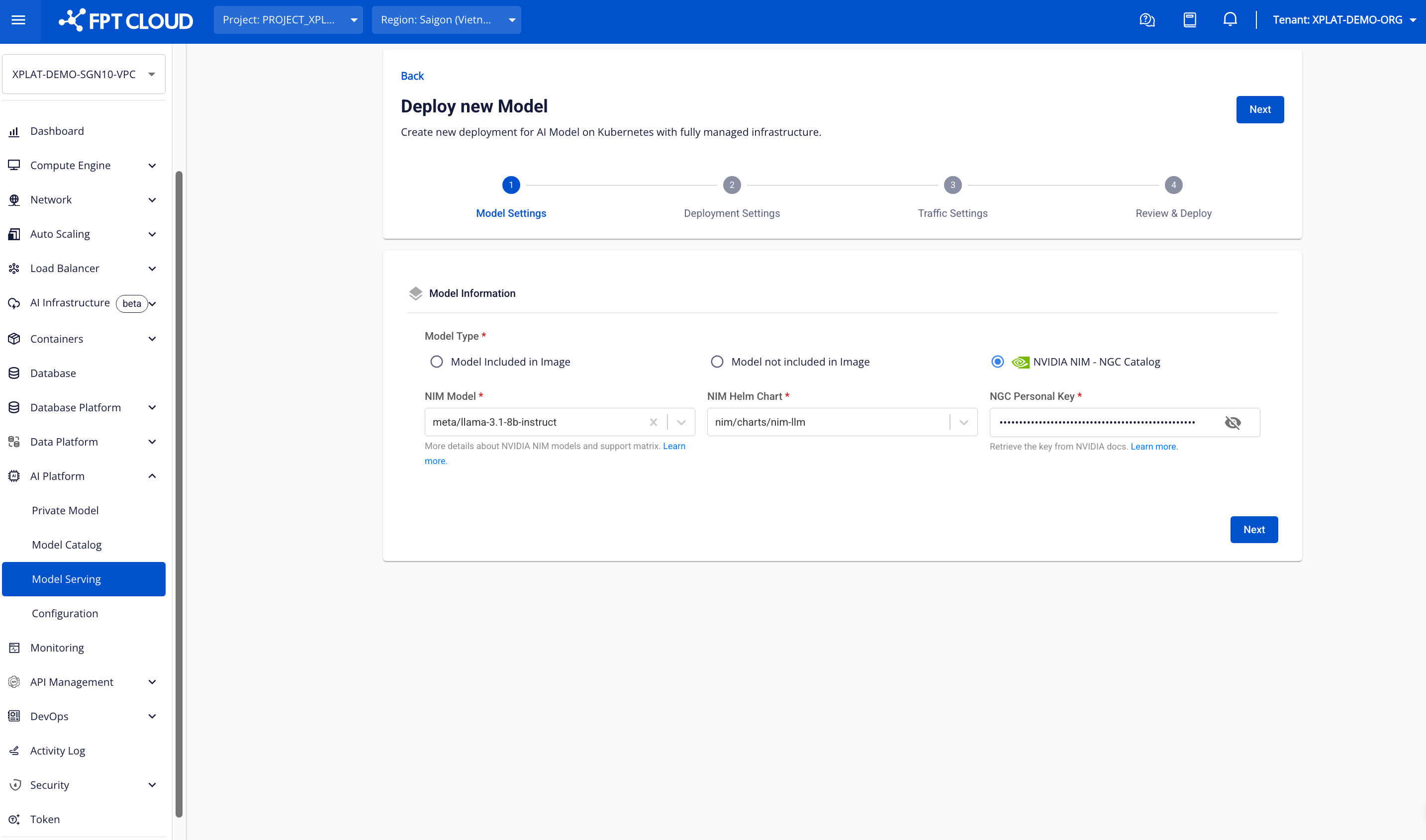

If Model Type is NVIDIA NIM – NGC Catalog , select deployment information:

• NIM Model : Select the NIM Model to deploy. Refer to the Support matrix to select the correct Model compatible with the deployment infrastructure.
• NIM Helm Chart : Select the appropriate Helm Chart to deploy the Model.
• NCG Personal Key : The personal key to authenticate the user with NGC Catalog.
  (Refer to theNGC Catalog User Guide to generate the personal key.)

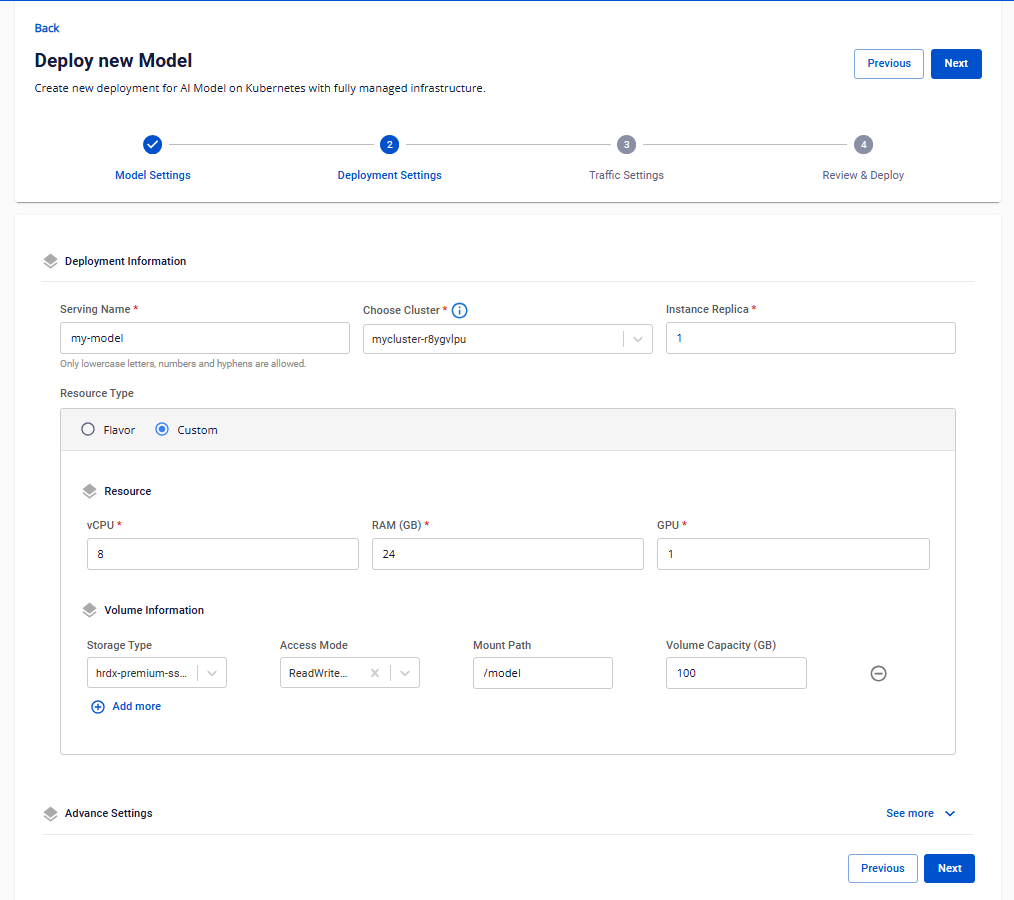

Step 3: Enter the Deployment Settings information, then click Next.

• Deployment Information: Information about the Deployment
  • Serving Name: The name of the deployment to be served.
  • Choose Cluster : Select the K8S cluster to serve from the list of K8S clusters in this VPC.
  • Instance Replica: The number of processing units in this deployment.
  • Resource Type: Information about resource configuration. There are two types of resources:
    • Flavor: Pre-configured selection for CPU/RAM/DISK/GPU
    • Custom: Custom configuration for CPU/RAM/DISK/GPU according to needs.

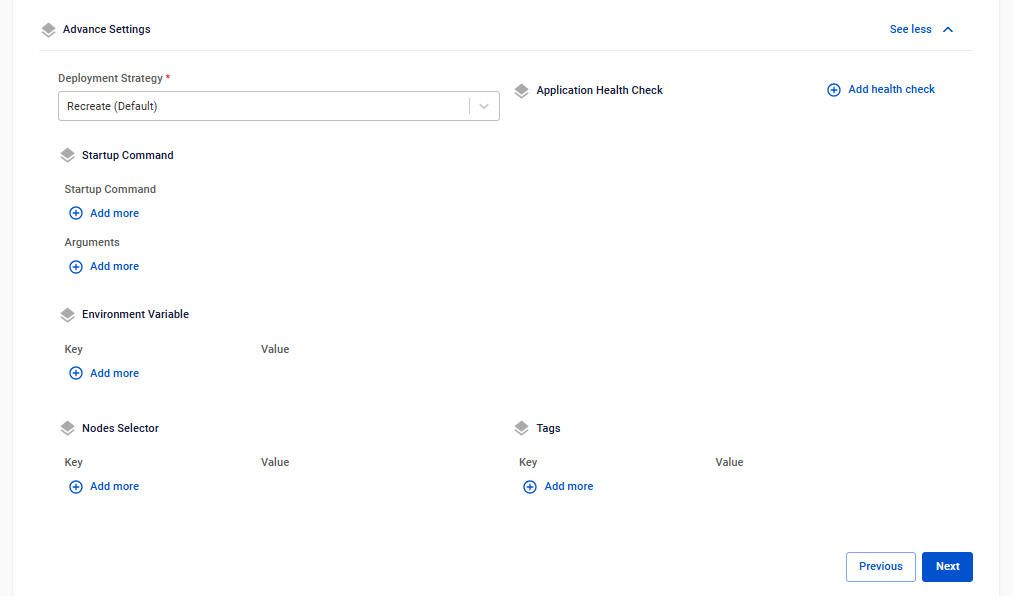

• Advance Settings: Enter advanced configurations for Deployment. Click See More to configure.
  • Deployment Strategy : Choose a deployment strategy for K8S. Available strategies include:
    • Recreate: Recreate instances when changes are made (downtime will occur)
    • Rolling: Gradually replace instances during updates (no downtime), but requires additional resources equivalent to one instance.
  • Startup Command: Configure the startup command for instances
    • Startup Command: The command executed when the instance starts
    • Arguments: Parameters passed to the startup command
  • Environment Variable: Define environment variables for the instance
    • Key: The name of the environment variable
    • Value: The value assigned to the environment variable
  • Nodes Selector: Select specific worker nodes/worker groups for deployment
    • Key: The label key assigned to the node
    • Value: The label value assigned to the node
  • Tags: Assign tags to the Deployment
    • Key: The label key assigned to the Deployment
    • Value: The label value assigned to the Deployment

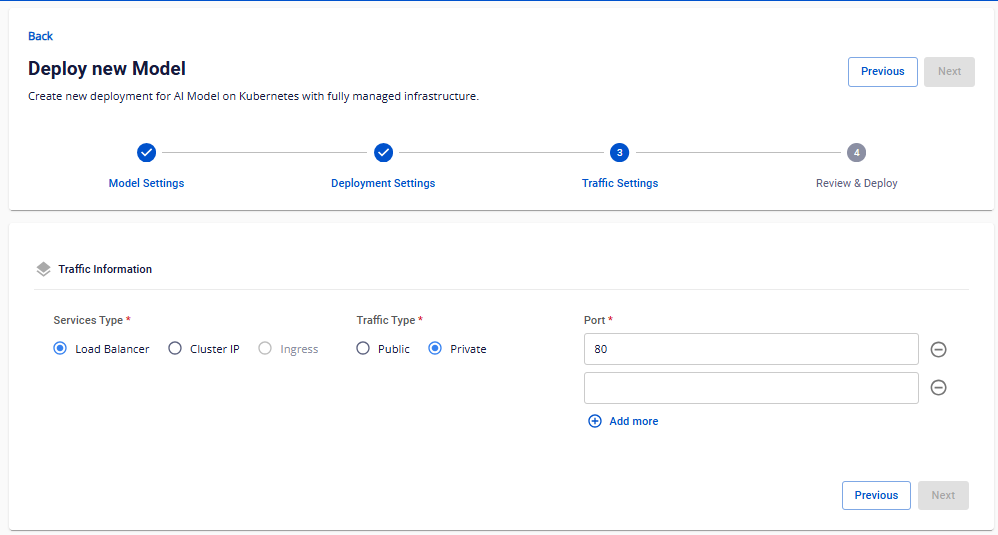

Step 4 : Enter configuration details for Traffic Settings , then click

• Traffic Information : Configure settings for the Deployment's external connection
  • Services Type : The type of service for the external connection
    • Load Balancer: Use load balancing
    • Cluster IP: Use internal communication within the Kubernetes Cluster
    • Ingress: Use the Ingress application to manage connection flows
  • Traffic Type : Specify the connection type: public or private
  • Port: The external connection port

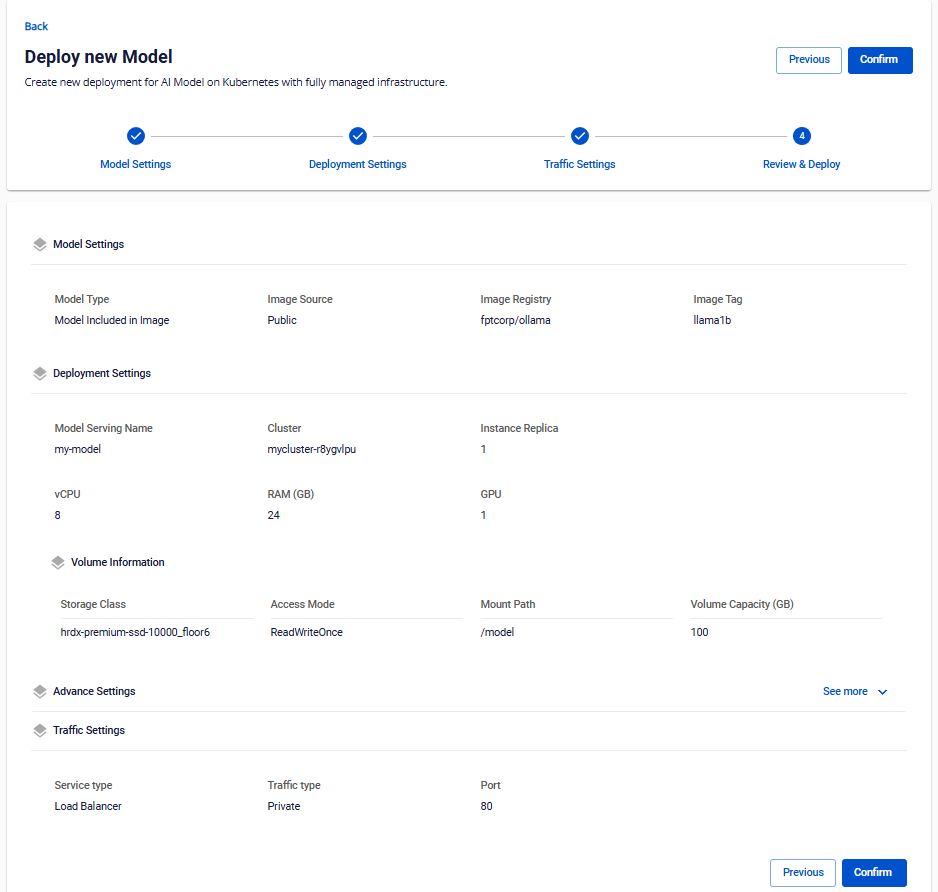

Step 5: Review the entered information and click Confirm to create the Deployment cluster
