DevOps pipeline integration

This guide explains how to integrate FSP Core Service scanning endpoints into your CI/CD pipeline, enabling automated code scanning, secret scanning, and container image security scanning on every change.

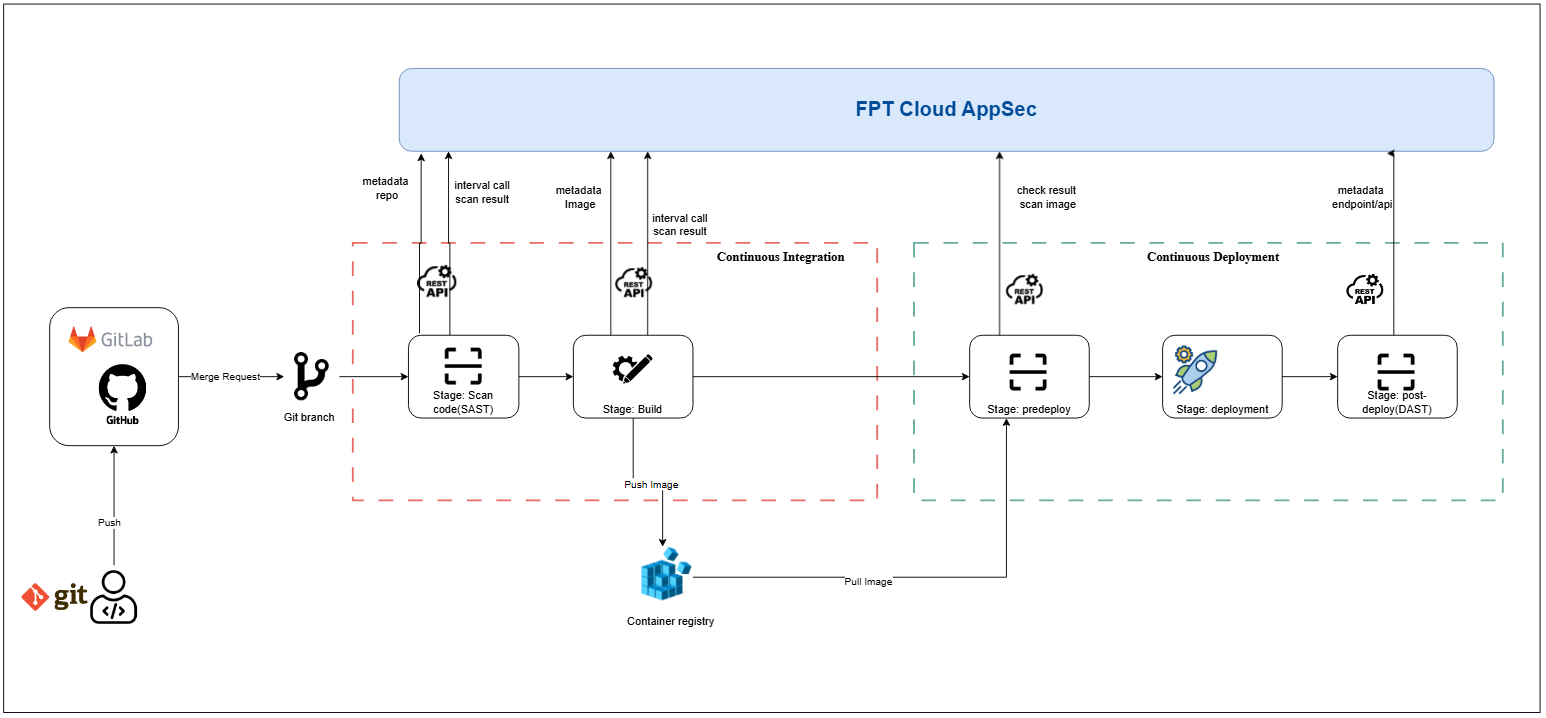

CICD flow

1. Overview​

Automating security scan steps in a CI/CD pipeline helps detect vulnerabilities early. This guide covers:

  • Prerequisites
  • Authentication setup
  • Pipeline integration steps for code scan, secret scan, and image scan
  • Sample configurations (GitLab CI, Jenkins)

2. Prerequisites​

  • An active FSP Core Service account with a valid Orgid and access_key.
  • Access to the API endpoints (e.g., /integration/scan-code, /integration/scan-secret, /integration/scan-image and corresponding result endpoints).
  • A CI/CD runner or agent that can reach the FSP Core Service API.
  • A Unix-like shell environment (bash, sh) for writing HTTP call scripts.

3. API specification​

3.1. Code scan integration​

3.1.1. Scan full source​

POST /api/v1/xplat/fsp-service/core-service/integration/scan-code

Initiates a source code scan for a specific repository and commit.

Headers

NameTypeRequiredDescription
OrgidstringNoOrganization ID for authentication

Body — Content-Type: application/json

NameTypeRequiredDescription
team_codestringYesFSEC team code. See here
git_repo_urlstringYesGit repository URL
access_keystringYesAccess key issued by FSEC. See here
branchstringYesBranch name to scan
commitstringNoCommit SHA to scan

Example

POST /api/v1/xplat/fsp-service/core-service/integration/scan-code HTTP/1.1
Host: api.yourdomain.com
Orgid: 123e4567-e89b-12d3-a456-426614174000
Content-Type: application/json

{
  "team_code": "FSEC_TEAM_001",
  "git_repo_url": "https://github.com/example/repo.git",
  "access_key": "abcd1234",
  "branch": "main"
}

Response — 200

{
  "data": {
    "errorCode": "F-000",
    "errorMessage": "",
    "data": { "request_code": "", "request_time": "2025-03-25 13:34:11" }
  }
}
3.1.2. Scan by commit​

POST /api/v1/xplat/fsp-service/core-service/integration/scan-code?scan-mode=commit

Same as above but commit field is required.

3.2. Secret scan integration​

3.2.1. Scan full source​

POST /api/v1/xplat/fsp-service/core-service/integration/scan-secret

Same request/response structure as code scan.

3.2.2. Scan by commit​

POST /api/v1/xplat/fsp-service/core-service/integration/scan-secret?scan-mode=commit

Same as above but commit is required.

3.3. Image scan integration​

POST /api/v1/xplat/fsp-service/core-service/integration/scan-image

Body

NameTypeRequiredDescription
team_codestringYesFSEC team code
access_keystringYesAccess key for the image registry
image_urlstringYesRegistry path and tag (e.g., repo:tag)

3.4. Get code scan result​

POST /api/v1/xplat/fsp-service/core-service/integration/get-scan-code-result

Body

NameTypeRequiredDescription
request_codestringYesRequest code from /scan-code
access_keystringYesAccess key issued by FSEC

3.5. Get secret scan result​

POST /api/v1/xplat/fsp-service/core-service/integration/get-scan-secret-result

Same structure as get code scan result.

3.6. Get image scan result​

POST /api/v1/xplat/fsp-service/core-service/integration/get-scan-image-result

Same structure as get code scan result.

4. Pipeline flow​

4.1. Code scan stage (after checkout)​

  • Trigger: POST .../integration/scan-code
  • Poll result: POST .../integration/get-scan-code-result until scan_result_status = SUCCESS
  • Pass/fail: Based on scan_result or your quality gates

4.2. Secret scan stage (after checkout)​

  • Trigger: POST .../integration/scan-secret
  • Poll result: POST .../integration/get-scan-secret-result
  • Pass/fail: Based on scan_result

4.3. Image scan stage (after build)​

  • Trigger: POST .../integration/scan-image
  • Poll result: POST .../integration/get-scan-image-result
  • Pass/fail: Based on scan_result

5. Sample configurations​

5.1. GitLab CI​

variables:
  ORGID: "$FSP_ORGID"
  ACCESS_KEY: "$FSP_ACCESS_KEY"
  API_URL: "https://api.yourdomain.com/api/v1/xplat/fsp-service/core-service"
  TEAM_CODE: "FSEC_TEAM_001"

stages:
  - code-scan
  - secret-scan
  - build
  - image-scan

.scan-stage: &scan-stage
  image: alpine:latest
  before_script:
    - apk add --no-cache curl jq
  script:
    - RESPONSE=$(curl -s -X POST "$API_URL/integration/${ENDPOINT}"
        -H "Orgid: $ORGID" -H "access_key: $ACCESS_KEY"
        -H "Content-Type: application/json"
        -d "{\"team_code\":\"$TEAM_CODE\",\"git_repo_url\":\"$CI_PROJECT_URL.git\",\"branch\":\"$CI_COMMIT_REF_NAME\",\"commit\":\"$CI_COMMIT_SHA\"}")
    - CODE=$(echo "$RESPONSE" | jq -r '.data.data.request_code')
    - |
      until [ "$(curl -s -X POST "$API_URL/integration/$RESULT_ENDPOINT"
            -H "Orgid: $ORGID" -H "access_key: $ACCESS_KEY"
            -H "Content-Type: application/json"
            -d "{\"request_code\":\"$CODE\",\"access_key\":\"$ACCESS_KEY\"}"
        | jq -r '.data.data.status')" = "COMPLETED" ]; do sleep 10; done
    - ISSUES=$(curl -s -X POST "$API_URL/integration/$RESULT_ENDPOINT"
        -H "Orgid: $ORGID" -H "access_key: $ACCESS_KEY"
        -H "Content-Type: application/json"
        -d "{\"request_code\":\"$CODE\",\"access_key\":\"$ACCESS_KEY\"}"
        | jq '.data.data.issues_found')
    - if [ "$ISSUES" -gt 0 ]; then echo "Found $ISSUES issues"; exit 1; fi

code-scan:
  stage: code-scan
  variables:
    ENDPOINT: "scan-code"
    RESULT_ENDPOINT: "get-scan-code-result"
  <<: *scan-stage

secret-scan:
  stage: secret-scan
  variables:
    ENDPOINT: "scan-secret"
    RESULT_ENDPOINT: "get-scan-secret-result"
  <<: *scan-stage

5.2. Jenkins Pipeline​

pipeline {
  agent any
  environment {
    ORGID = credentials('FSP_ORGID')
    ACCESS_KEY = credentials('FSP_ACCESS_KEY')
    API_URL = 'https://api.yourdomain.com/api/v1/xplat/fsp-service/core-service'
  }
  stages {
    stage('Code Scan') {
      steps {
        script {
          def payload = [team_code: 'FSEC_TEAM_001', git_repo_url: env.GIT_URL,
                         branch: env.BRANCH_NAME, commit: env.GIT_COMMIT]
          def response = httpRequest acceptType: 'APPLICATION_JSON',
            contentType: 'APPLICATION_JSON', httpMode: 'POST',
            requestBody: groovy.json.JsonOutput.toJson(payload),
            url: "${API_URL}/integration/scan-code",
            customHeaders: [[name:'Orgid', value:ORGID], [name:'access_key', value:ACCESS_KEY]]
          def code = readJSON(text: response.content).data.data.request_code
          timeout(time: 5, unit: 'MINUTES') {
            waitUntil {
              def result = httpRequest acceptType: 'APPLICATION_JSON',
                contentType: 'APPLICATION_JSON', httpMode: 'POST',
                requestBody: groovy.json.JsonOutput.toJson([request_code: code, access_key: ACCESS_KEY]),
                url: "${API_URL}/integration/get-scan-code-result",
                customHeaders: [[name:'Orgid', value:ORGID], [name:'access_key', value:ACCESS_KEY]]
              return readJSON(text: result.content).data.data.status == 'COMPLETED'
            }
          }
        }
      }
    }
  }
}
