Create JupyterHub

To create a JupyterHub, follow the steps below:

Step 1: In the menu bar, select Data Platform > Workspace Management > Workspace name

Step 2: In the Workspace Details section, click Create > the Services popup appears, select JupyterHub service > Create Service

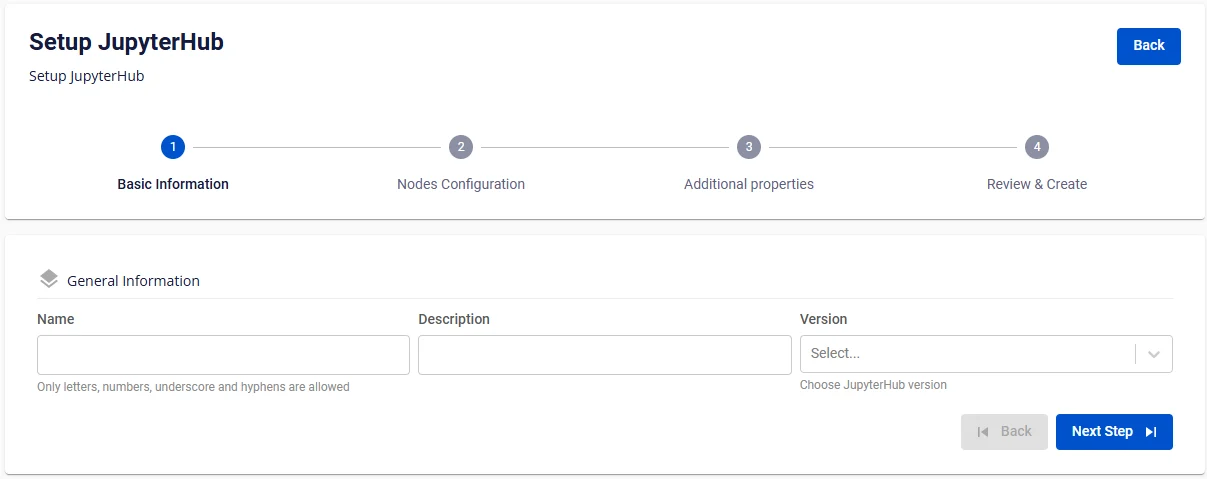

Step 3. In the JupyterHub creation form, enter the Basic Information details:

Name (required): Service name

Note: The name may contain lowercase letters a-z, uppercase letters A-Z, or digits 0-9. Spaces are not allowed — use "-" or "_" instead.

Description (optional): Description
Version (required): Select the JupyterHub version

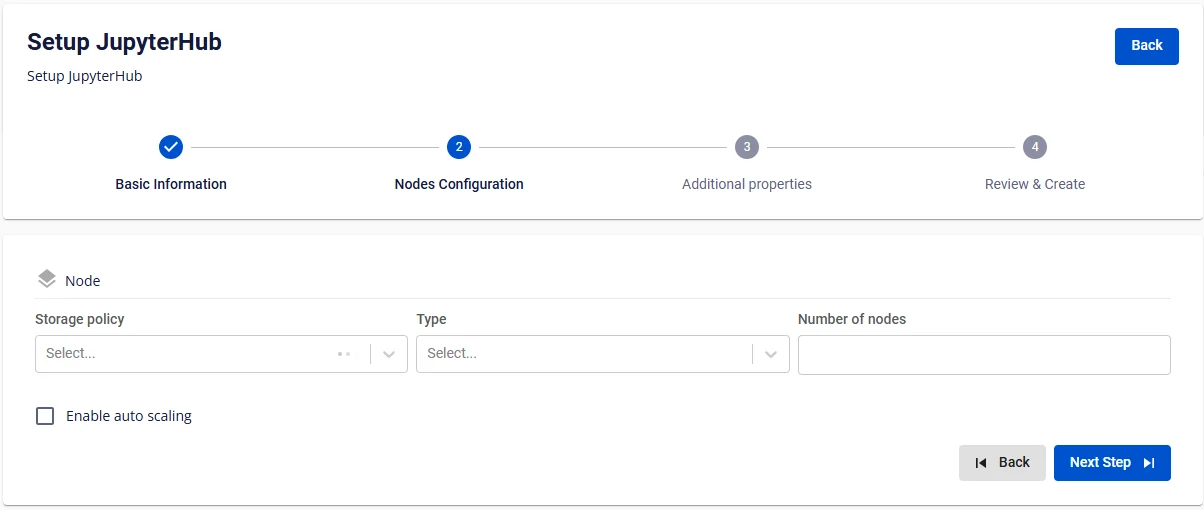

Step 4: Click Next Step to proceed to the Nodes Configuration screen

Enter the following information:

Storage policy: Select a storage policy
Type: Select the flavor type
Number of nodes: Enter the number of nodes to configure for JupyterHub

warning

The number of nodes must be greater than or equal to 2 and less than or equal to 10.

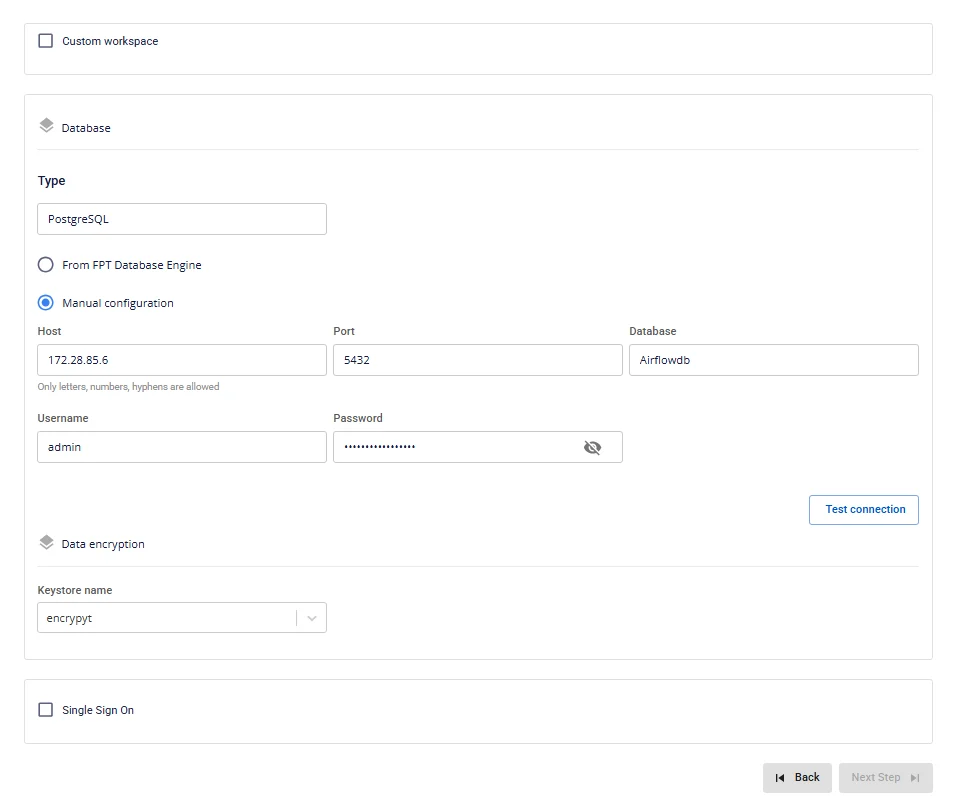

Step 5: Click Next Step to proceed to the Advanced Properties screen

Configure the following options:

Custom workspace: Check to save user data to S3

Mount S3 storage (directory for storing user Workspace code)

Storage name: Select the storage name
S3 workspace path: Enter the storage path

Database

Type: Default is PostgreSQL
Host name (required): Hostname or IP address of Postgres
Port (required): Connection port, default is 5432
Database name (required): Database name
Username (required): Access account username
Password (required): Access password

Data encryption

Keystore name: Select from the Workspace Keystore catalog to encrypt sensitive data when using JupyterHub with the Database

Single Sign On: Check to enable SSO authentication for JupyterHub

Provider: FPT ID
- Username: Username
- Email: FPT email address
Provider: Google
- Client ID: Client ID information
- Client Secret: Secret information
- Email: Email address
Provider: Keycloak
- Auth Provider name: Provider name
- Realm: Realm information
- Auth server url: Auth URL address
- Client ID: Client ID information
- Client Secret: Secret information
- Username: Account username
- Email: Email address

Custom Domain
- Purpose: Allows configuration of a custom domain to access services.
  - For Public Workspace: Used to assign a domain and certificate without needing to enable/disable TLS (HTTPS is always available).
  - For Private Workspace: In addition to domain and certificate, users can optionally enable or disable TLS/SSL to choose between HTTPS and HTTP.
- Workspace is Public
  - Custom domain: Check to enable custom domain.
  - Domain: Enter the domain name (e.g., abc.local, jupyter.example.com).
  - Certificate name: Select from the list of certificates imported in Certificate Manager.
  - Buttons:
  - Manage certificate: Open the certificate management screen.
  - Validate: Verify the certificate is valid for the domain.

note

For a Public Workspace, the TLS/SSL certificate option is not displayed — the system supports HTTPS by default.

Workspace is Private
- Custom domain: Check to enable custom domain.
- Domain: Enter the domain name.
- TLS/SSL certificate: Check to enable HTTPS for services.
- Certificate name: Select from the certificate list.
- Buttons:
- Manage certificate: Open certificate management.
- Validate: Verify the certificate.

note

If TLS/SSL certificate is unchecked, the service will run on HTTP and no certificate is required.

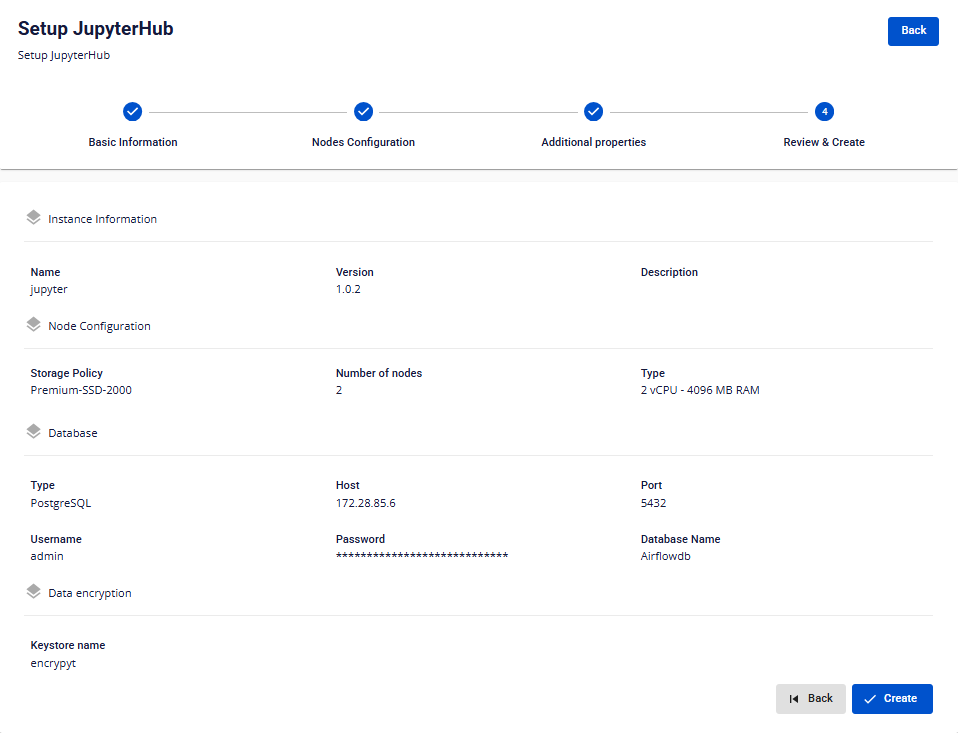

Step 6. Click Next Step to proceed to the Review & Create screen

Step 7. Review the information, then click Create to complete the JupyterHub creation.

JupyterHub initialization is complete when the Worker Status is Succeeded and the Status of JupyterHub is Healthy (~10 minutes).
