Access cluster detail information

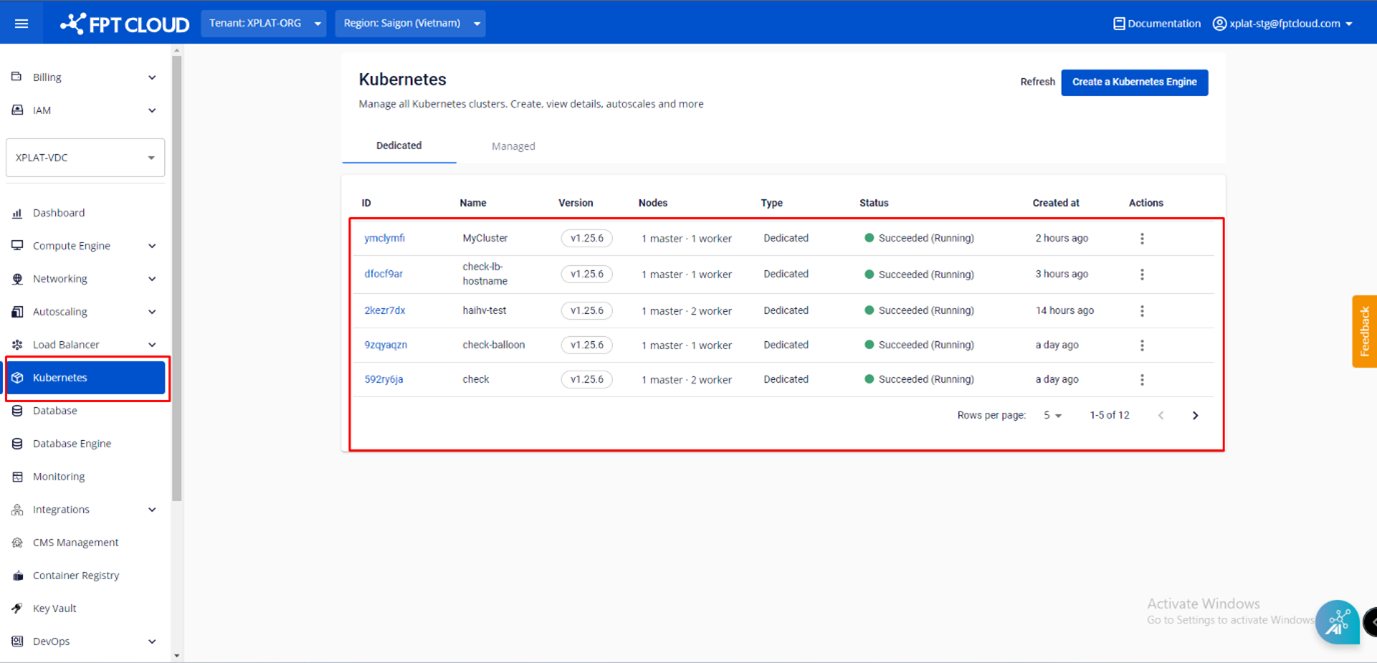

Step 1: From the menu, select Kubernetes. The Kubernetes Management page appears.

Step 2: Select the Cluster you want to view details for from the list.

Step 3: Select a tab to view the corresponding information.

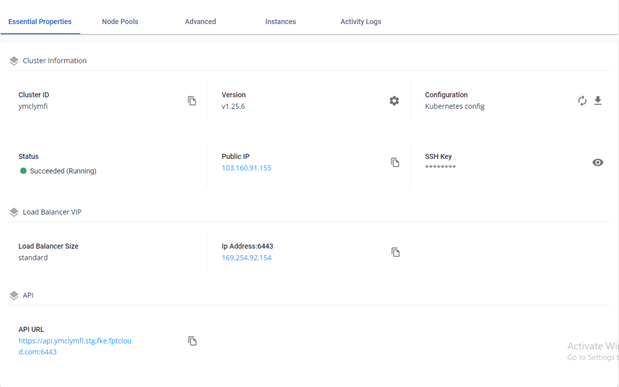

3.1 Essential Properties tab: Displays Cluster Information, Load Balancer VIP, and API information.

  • Cluster Information: Displays basic cluster information including Cluster ID, Version, Kubernetes config, Status, Public IP, and SSH Key.
  • Load Balancer VIP: Displays the virtual IP of the LB used for K8s API and Ingress.
  • Dashboard & API: Displays the API URL.

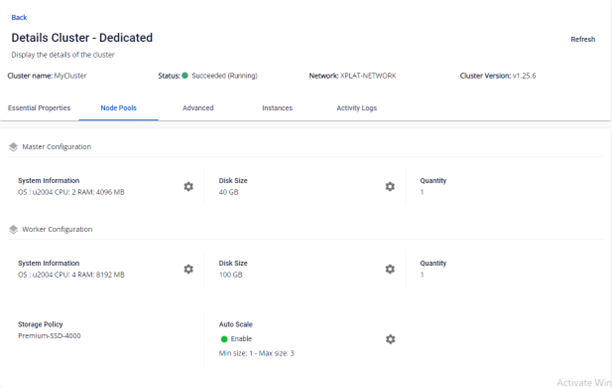

3.2 Node Pools tab: Displays node configuration information including Master nodes and Worker nodes.

  • Master Configuration: Displays the quantity, CPU, Memory, and Disk configuration of Master Nodes.
  • Worker Configuration: Displays the quantity, CPU, Memory, Disk, Storage Policy, and Auto Scale configuration of Worker Nodes.

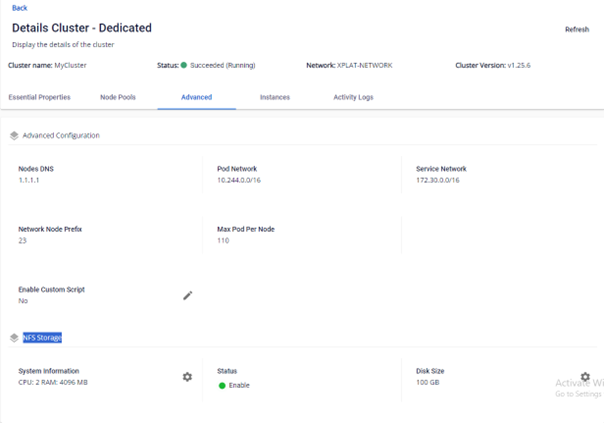

3.3 Advanced tab: Displays advanced parameters of the Kubernetes cluster.

  • Advanced Configuration: Displays advanced parameters (Nodes DNS, Pod Network, Service Network, Network Node Prefix, Max Pod Per Node, Enable Custom Script).
  • NFS Storage: Displays the Enable/Disable status and disk capacity of NFS Storage.

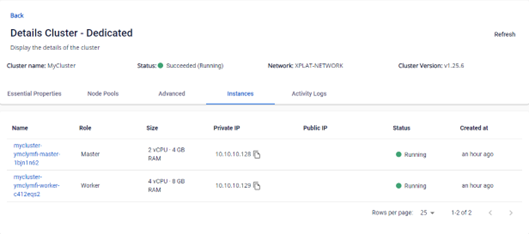

3.4 Instances tab: Displays virtual machines belonging to the Kubernetes cluster, including Master nodes and Worker nodes.

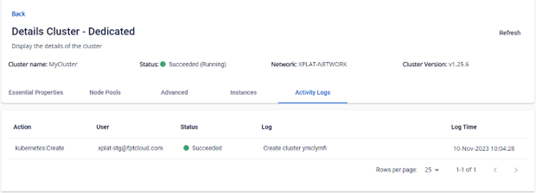

3.5 Activity Logs tab: Records logs of Actions performed on the Kubernetes cluster.
