Create VPN connection
To create a VPN Connection, follow the steps below.

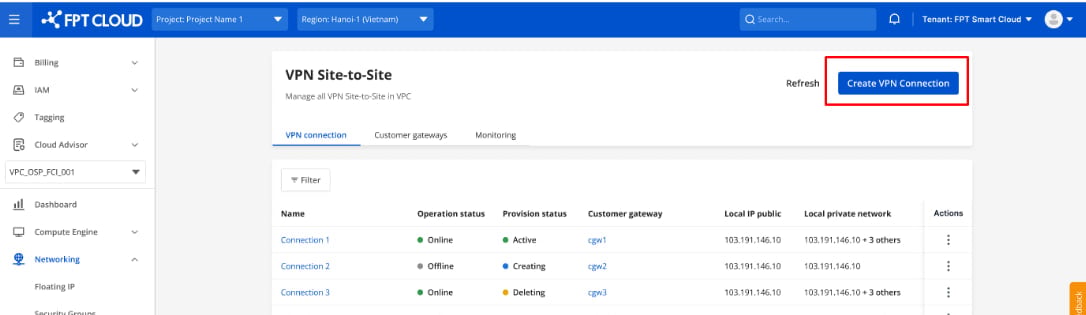

Step 1: In the menu, select Network, then select the VPN Site-to-Site tab. This page manages VPN Connections. Select Create VPN connection.

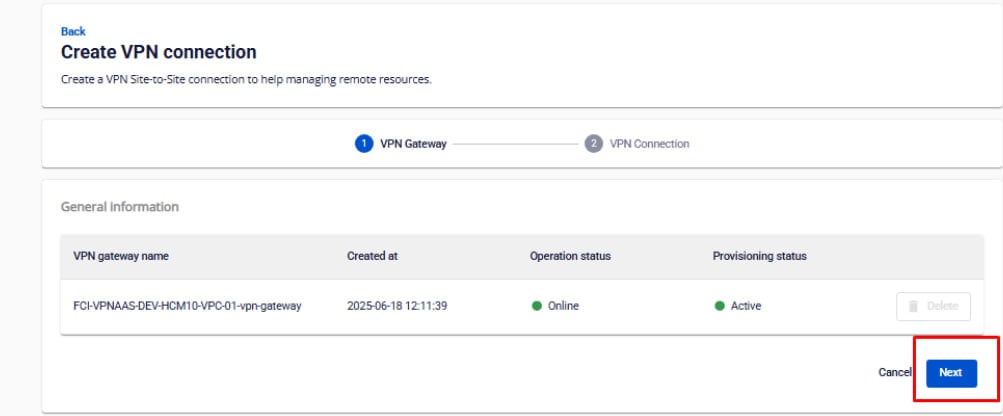

Step 2: Initialize the VPN Gateway and select Next.
Step 3: Enter the configuration details to create the VPN Connection. The VPN Connection parameters consist of three main sections:
- General Information (general connection details)
- Remote VPN Information (encryption settings and customer-side information)
- Dead Peer Detection (number of automatic retries when a connectivity issue occurs)

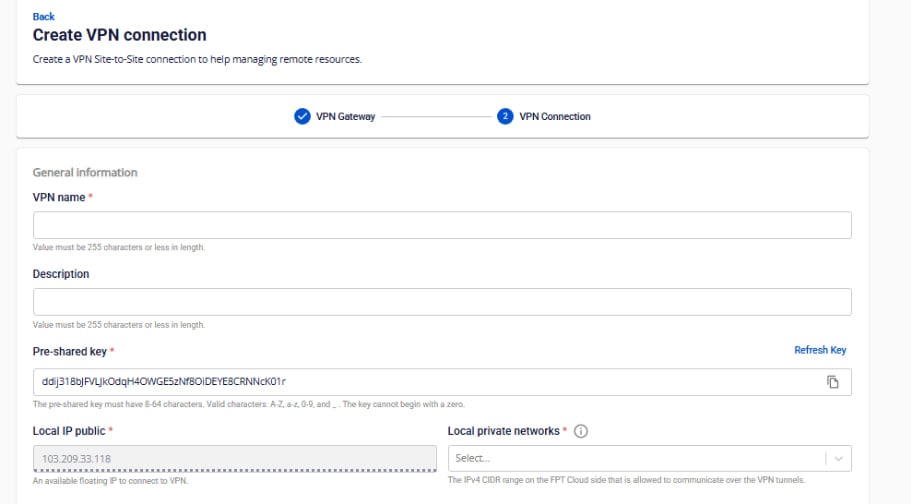

Section 1: General information
| Field | Description |
|---|---|
| VPN name | Name of the VPN Connection. |
| Description | Description of the VPN Connection. |
| Pre-shared key | The shared security key between the two devices. You can generate a new key by selecting Refresh Key and copy it by selecting Copy. |
| Local IP public | Public IP assigned by the FPT Cloud system. |
| Local private networks | Network range of resources on FPT Cloud. |
Section 2: Remote VPN Information
Customer gateway
| Field | Description |
|---|---|
| Customer gateway | |
| Customer gateway | The configuration at the other end of the connection. Select the correct Customer Gateway you want to connect to in this step. If you do not have a Customer Gateway yet, click here/ for the setup guide. |
| Providers | List of VPN connection providers to FCI. |
| IKE Policy | |
| Authorization algorithm | Algorithm used to authenticate data during VPN connection establishment. Values: sha1, sha256, sha384, sha512, aes-xcbc. Use sha256 for a good balance of security and performance. |
| Encryption algorithm | Encrypts the key negotiation process. Values: aes-128, aes-192, aes-256, aes-128-gcm-8, aes-128-gcm-12, aes-128-gcm-16, aes-192-gcm-8, aes-192-gcm-12, aes-192-gcm-16, aes-256-gcm-8, aes-256-gcm-12, aes-256-gcm-16. FCI recommends aes-256 for the best balance of security and performance. If you use ikev1, do not select gcm algorithms as they will cause issues with the VPN connection. |
| IKE version | Supported IKE versions. Values: ikev1, ikev2. FCI recommends ikev2 for most firewall devices. If you use older Cisco devices that only support ikev1, select ikev1. |
| Lifetime units | Unit of measurement for the IKE connection lifetime. Default: second. |
| Lifetime value | Specific lifetime value for Phase 1. |
| DH Group | Diffie-Hellman algorithm group used to generate the initial key exchange. Values: group_1, group_2, group_5, group_14, group_15, group_16, group_17, group_18, group_19, group_20, group_21. |
| Phase 1 negotiation mode | How the two devices establish a secure connection in Phase 1 of IKE. Values: main, aggressive (default: main). |
| IPSec Policy | |
| Authorization algorithm | Algorithm used to authenticate data during VPN connection establishment. Values: sha1, sha256, sha384, sha512, aes-xcbc. Use sha256 for a good balance of security and performance. |
| Encapsulation mode | Mode in which data is encrypted and encapsulated before transmission. Default: tunnel. |
| Encryption algorithm | Encrypts the actual data transmitted over the VPN. Values: aes-128, aes-192, aes-256. Use aes-256 for the best balance of security and performance. |
| Lifetime units | Default: second. |
| Lifetime value | The duration an IPSec session is allowed to remain active before it must be re-established. |
| Perfect forward secrecy | Option to ensure session key security (PFS — typically paired with a DH Group). Values: off, group_1, group_2, group_5, group_14, group_15, group_16, group_17, group_18, group_19, group_20, group_21. Use group_14 for a good balance of security. |
| Transform protocol | Protocol used to define how encryption and authentication work in IPSec. Values: esp, ah. |
About Providers
- FCI currently supports pre-configured settings for the following providers: AWS, Fortigate, Palo Alto. FCI recommends using these settings for the best connection results.
- For providers not in the list above, manually enter the Providers name, IKE, and IPSec information.
Pre-configured parameters for supported providers:
| Configuration parameter | AWS | Fortigate | Palo Alto |
|---|---|---|---|
| IKE Info | |||
| IKE version | ikev2 | ikev2 | ikev2 |
| Encryption algorithm | aes-256 | aes-256 | aes-256 |
| Authorization algorithm | sha256 | sha256 | sha256 |
| DH Group | group14 | group 19 | group 20 |
| Lifetime value | 28800s | 28800s | 28800s |
| Phase 1 negotiation mode | main | main | main |
| IPSec Info | |||
| Encryption algorithm | aes-256 | aes-256 | aes-256 |
| Authorization algorithm | sha256 | sha256 | sha256 |
| Perfect forward secrecy | group14 | group14 (or group19) | group 19 |
| Lifetime value | 3600s | 3600s | 3600s |
| Encapsulation mode | tunnel | tunnel | tunnel |
| Transform protocol | esp | esp | esp |

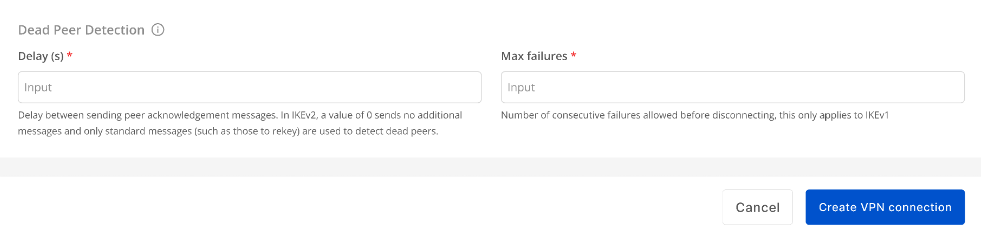

Section 3: Dead Peer Detection
| Field | Description |
|---|---|
| Delay(s) | Time (in seconds) between each DPD probe sent to check the connection. Default: 30s. |
| Max failures | Maximum number of failed checks before the peer is considered dead and the connection is reset. Default: 10. |
After filling in all the information, select Create VPN Connection.
