Monitor service through the Logging feature

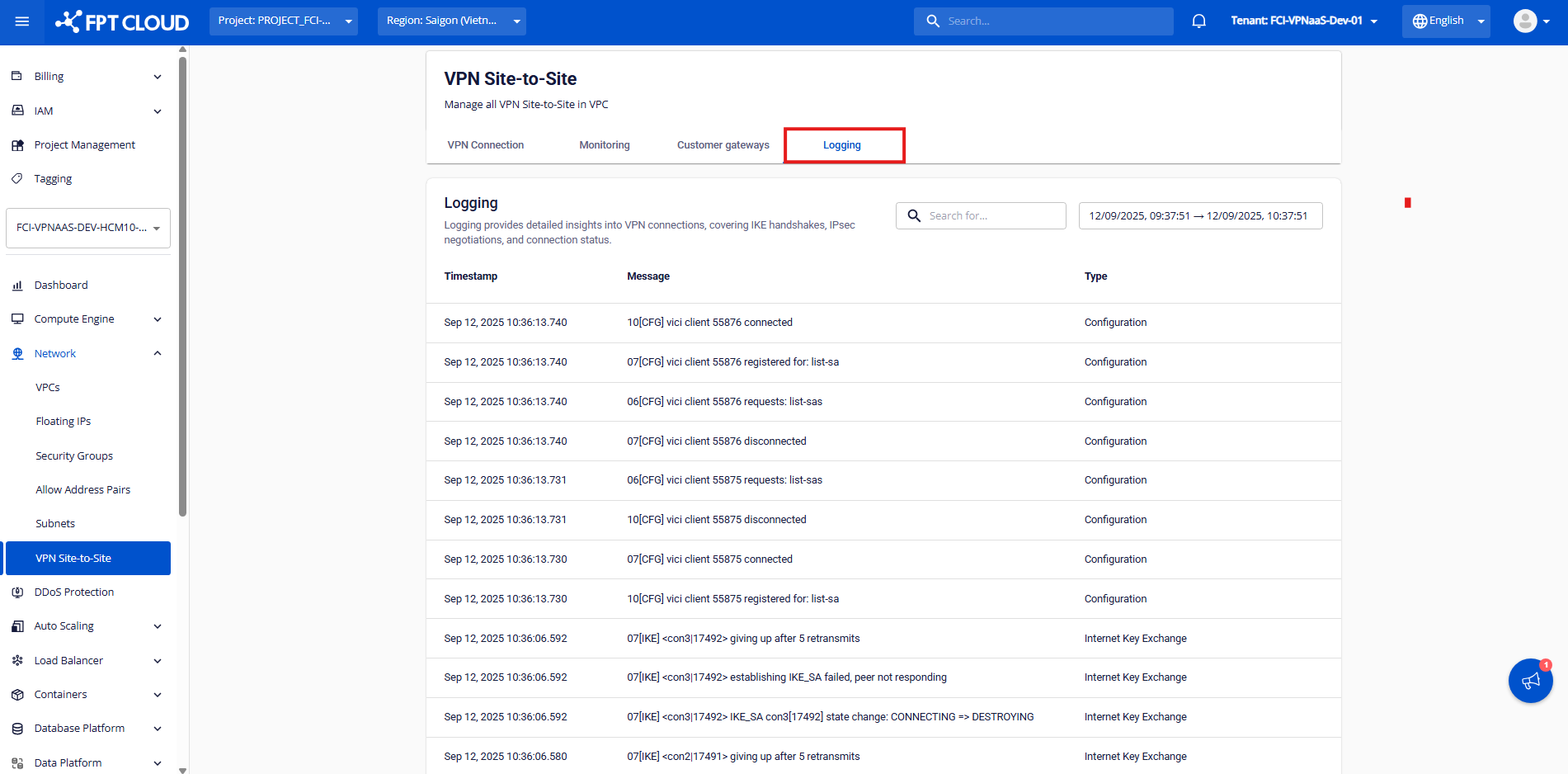

- On the VPN detail screen, select the Logging tab from the horizontal menu.

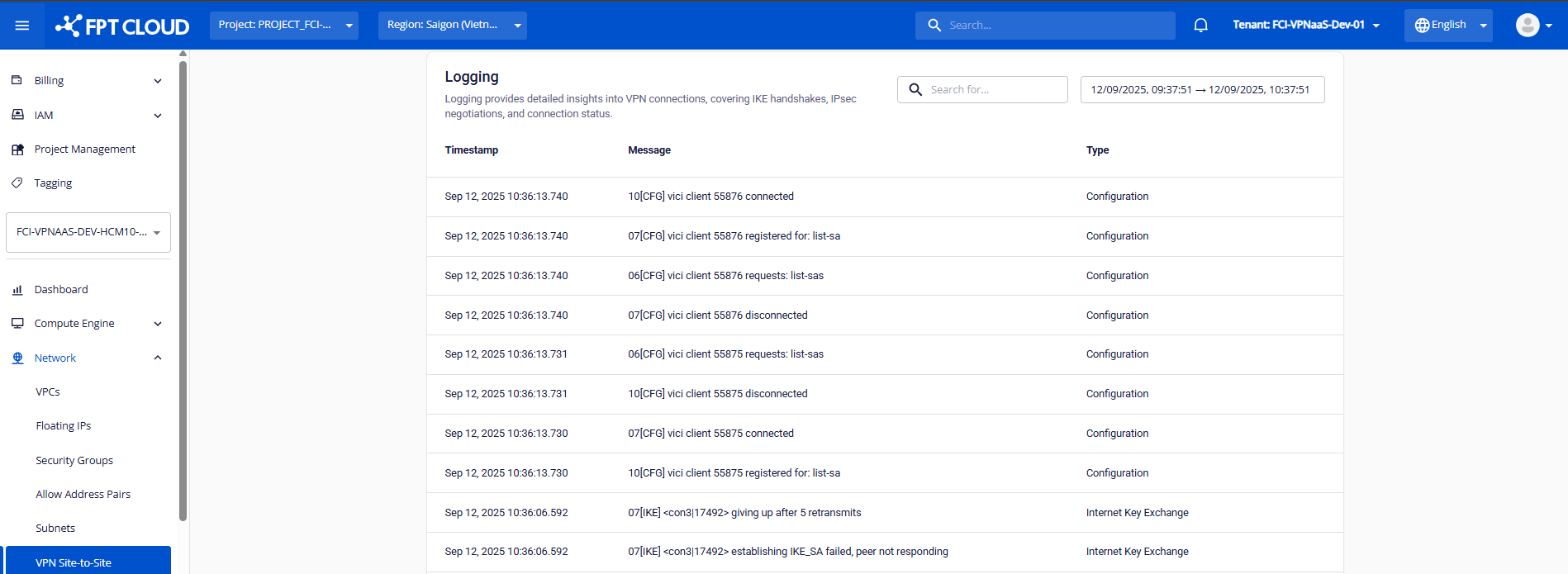

- Review the service activity history.
FPT Smart Cloud provides the following system log types:
| Type | Description |
|---|---|
| IKE (Internet Key Exchange) | Phase 1 setup — key exchange information. |
| CFG (Configuration) | Phase 2 setup — tunnel configuration information. |
| NET (Network) | Communication between peers via UDP 500/4500. |
| KNL (Kernel) | Route or route policy configuration. |
| ENC (Encryption) | Encryption/decryption during handshake. |
| DPD (Dead Peer Detection) | Peer health check information. |
| LIB (Library) | Internal library calls within the Charon engine. |
| ESP (Encapsulating Security Payload) | Security Association (SA) setup using IPsec. |
| TRC (Traffic) | Encrypted traffic packet transmission. |
| System | Other system logs. |
Common log messages:
| Content | Log message | Meaning / Troubleshooting |
|---|---|---|
| IKE Phase 1 successful | [IKE] IKE_SA <name> established between 192.0.2.90[192.0.2.90]...192.0.2.74[192.0.2.74] | The IKE SA connection was successfully established between the local and remote IPs. |
| IPSec Phase 2 successful | [IKE] CHILD_SA <name> established with SPIs cf4973bf_i c1cbfdf2_o and TS 192.168.48.0/24/0 === 10.42.42.0/24/0 | The data tunnel has been successfully established between the subnet ranges. |
| Traffic successful | [NET] sending packet: from x.x.x.x[4500] to x.x.x.x[4500] (80 bytes) | Data packets were successfully transmitted through the tunnel. Port 4500 indicates NAT-T is in use. |
| Rekey successful | CHILD_SA con4{97} state change: REKEYING => REKEYED | The system automatically regenerated a new security key without disrupting the connection. |
| PSK authentication successful | authentication of 'IP' with pre-shared key successful | The device authenticated successfully using the pre-shared key. |
| Incorrect Phase 1 negotiation mode | [IKE] initiating Aggressive Mode IKE_SA / Aggressive Mode PSK disabled for security reasons | Phase 1 negotiation mode mismatch between peers. Recheck the Phase 1 negotiation mode setting. |
| Incorrect IKE Policy Phase 1 | [IKE] no peer config found | Phase 1 authentication failed. Verify the IKE Policy on both sides. |
| Mismatched Pre-shared Key | [ENC] invalid HASH_V1/ID_V1 payload length, decryption failed? | Authentication failed. Verify both peers use the same pre-shared key. |
| Incorrect IKE Policy | [IKE] no proposal found | Incorrect encryption or algorithm settings in Phase 1. Recheck the IKE Policy configuration. |
| Incorrect IPsec Policy | [IKE] no matching CHILD_SA config found | Phase 2 authentication failed. Review the IPsec Policy and verify the remote subnet in the Customer Gateway. |
| Peer ID mismatch | [IKE] IDir '192.0.2.10' does not match to '203.0.113.245' | Peer ID mismatch. Verify Local/Remote ID configuration if NAT IP is used. |
