Component Management

1, Create component

Definition: A component represents elements within a business flow or a business.

Example: Inside the Long Chau tag there are components such as: LoadBalancer, Kubernetes, DB, etc.

To create a component, follow these steps:

Step 1: Successfully access the Relation management service.

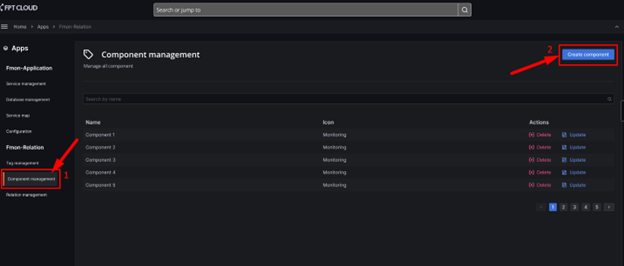

Step 2: In the service menu, click Component management >> Button Create component

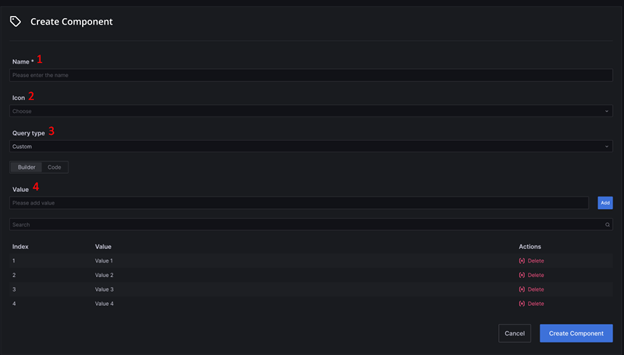

Step 3: The creation form is displayed. Fill in the following information:

• Name (required): component name
• Icon (optional)
• Query type: default is Custom
• Value: you can add values to the component.

There are 2 ways to enter a value:

• Builder

Enter the value in the text box >> Click the Add button.

If you want to add multiple values at once, enter values in the text box separated by commas (,) >> Click the Add button.

Example:

• Code

If you select Code, add values by entering them separated by commas (,).

Example:

Step 4: After filling in all information, click Create to create the component.

After successful creation, the component appears in the list screen.

2, Update component

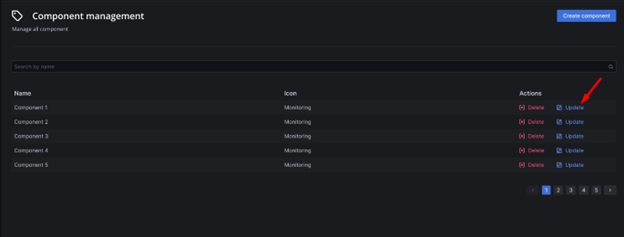

Step 1: In the menu, select Component management >> In the list screen, under the Action column, click the Update button.

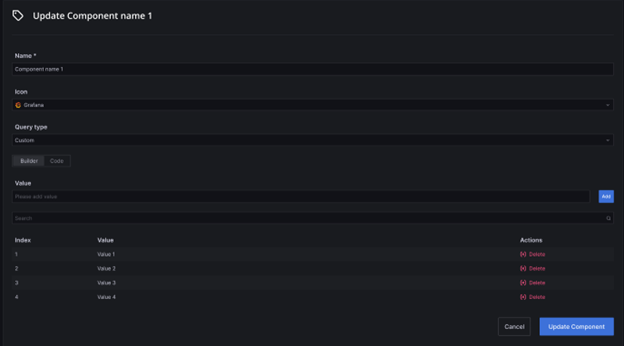

Step 2: Edit the component information. The following fields can be modified:

• Name
• Icon
• Query type
• Value: you can add or remove values from the component.

Step 3: Click the Update button to complete.

To cancel the operation, click Cancel to exit the edit screen.

3, Delete component

To delete a component, follow these steps:

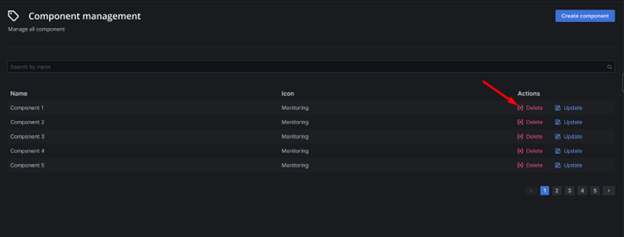

Step 1: In the menu, select Component management >> In the list screen, under the Action column, click the Delete button.

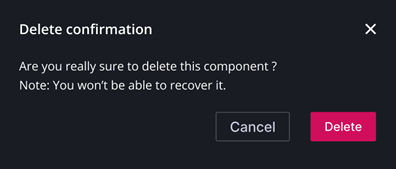

Step 2: The system will display a confirmation popup. To confirm deletion, click Delete in the popup.

To cancel the deletion, click Cancel.
