VPN Site-to-Site configuration with Palo Alto

Prerequisites

Ensure the following conditions are met before starting:

• The VPN Site-to-Site service is set up on FPT Cloud Portal.
• A Palo Alto firewall is installed and enabled on the customer side.
• The Palo Alto firewall has three IP addresses configured: Management (Public IP), WAN (Public IP), and LAN.

Step 1: Configure VPN Site-to-Site on FPT Cloud Portal

Access https://console.fptcloud.com/ and create the VPN Site-to-Site.

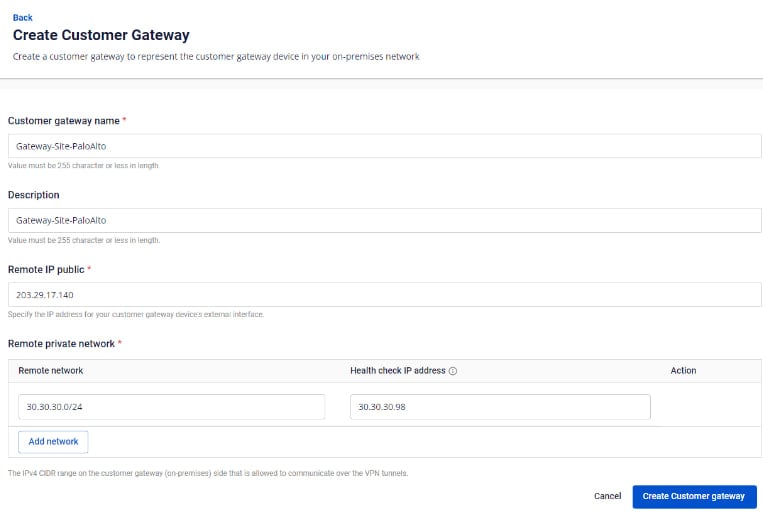

Create a Customer Gateway:

• Remote private network: LAN subnet range for peering with Palo Alto
• Remote IP public: Public IP address of the Palo Alto firewall

Create a VPN Connection:

A VPN connection has three main sections:

• General Information — basic connection details
• Remote VPN Information — encryption and customer-side configuration
• Dead Peer Detection — automatic retry settings

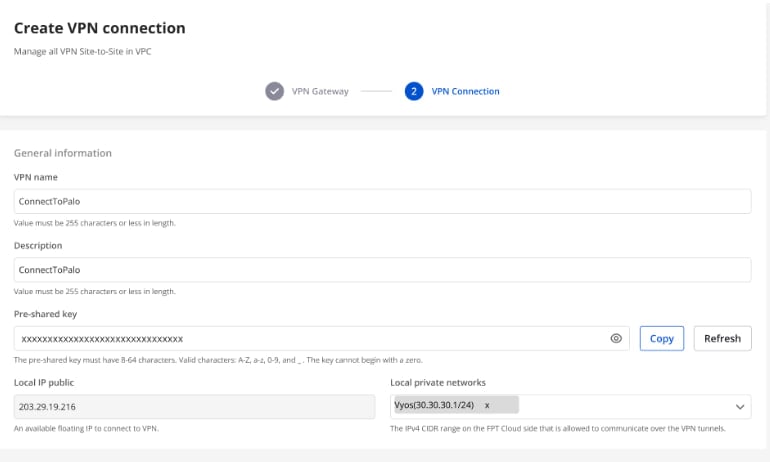

Section 1: General Information

note

Save the Pre-shared key value — you will need it when configuring Palo Alto.

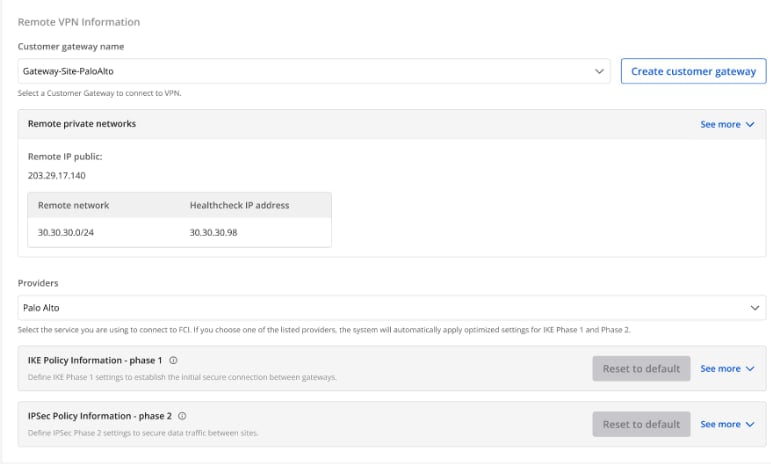

Section 2: Remote VPN Information

When selecting the provider Palo Alto, the system automatically fills in the IKE and IPsec settings:

IKE:

Parameter	Value
Encryption algorithm	aes-256
Authorization algorithm	sha256
IKE version	ikev2
Lifetime units	seconds
Lifetime value	28800
DH Group	GROUP_14
Phase 1 negotiation mode	main

IPsec:

Parameter	Value
Encapsulation mode	tunnel
Encryption algorithm	aes-256
Authorization algorithm	sha256
Lifetime units	seconds
Lifetime value	3600
Perfect Forward Secrecy (PFS)	GROUP_14
Transform protocol	esp

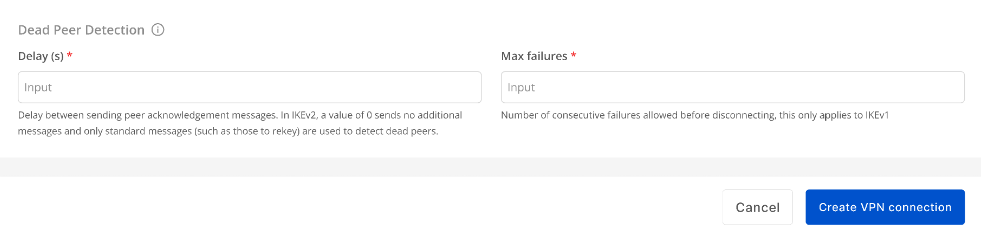

Section 3: Dead Peer Detection

Enter the Delay and Max failure values, then click Create VPN Connection.

Step 2: Configure IPsec on Palo Alto

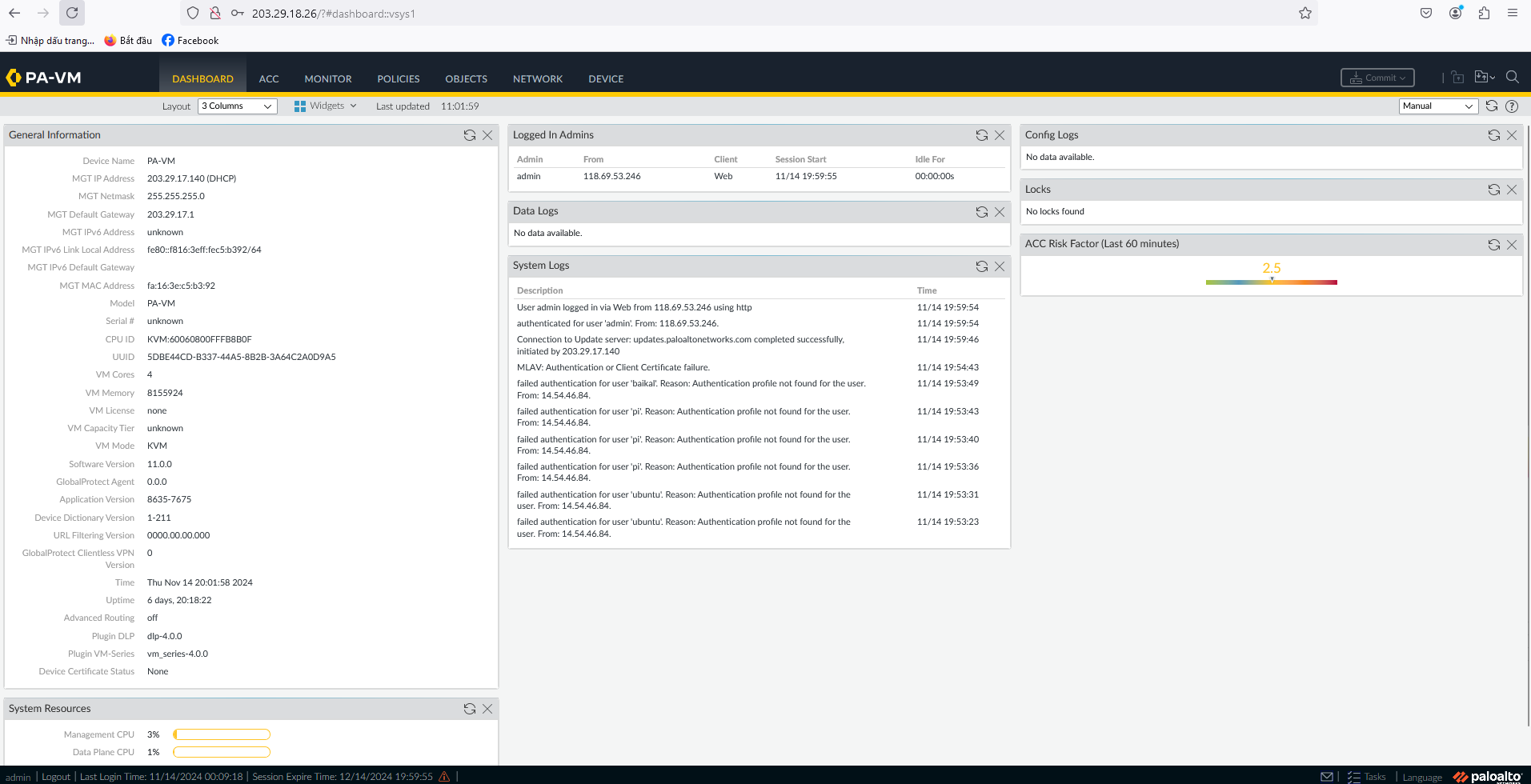

1. Log in to Palo Alto via the Management IP.

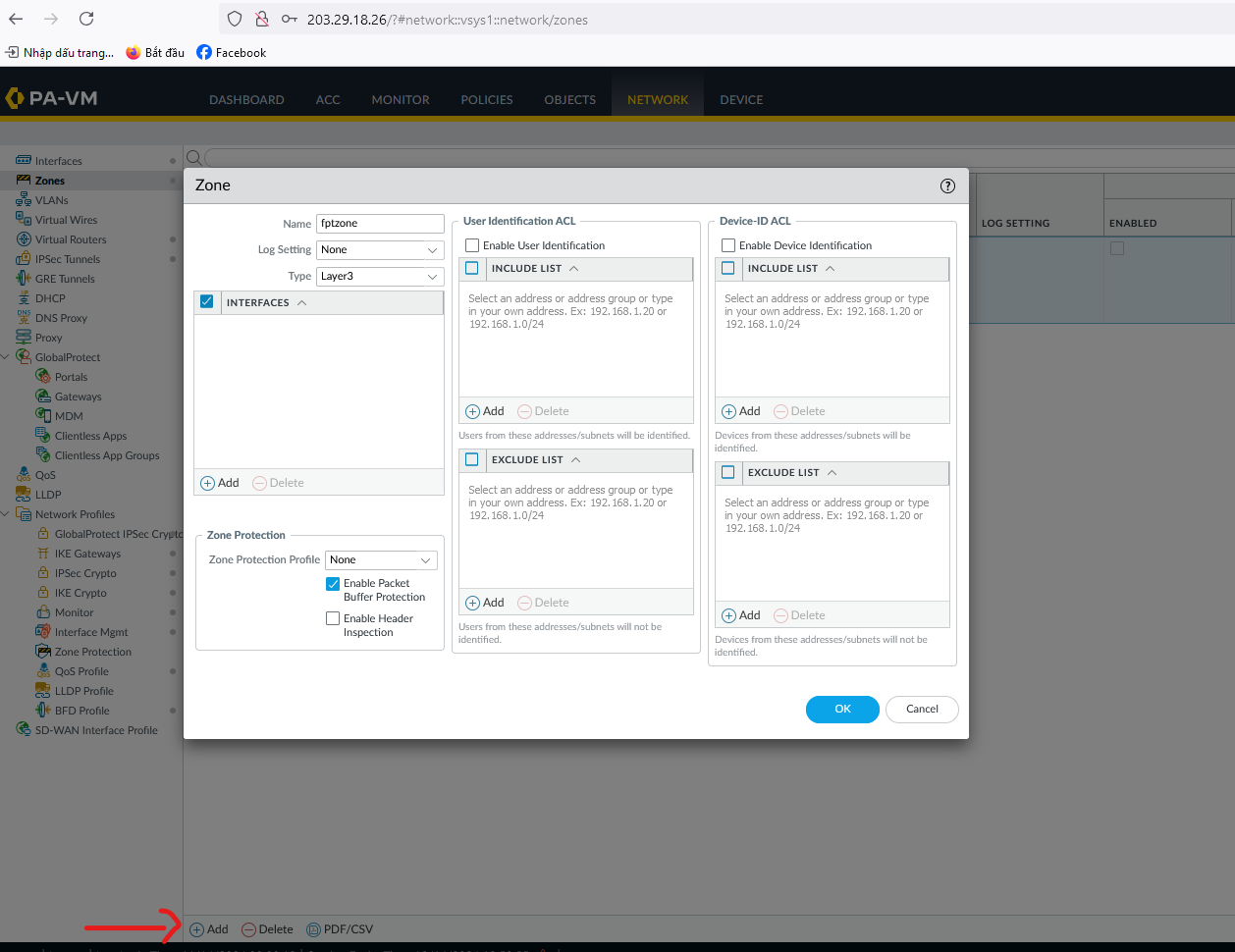

2. Click Add and activate the Palo Alto Zone.

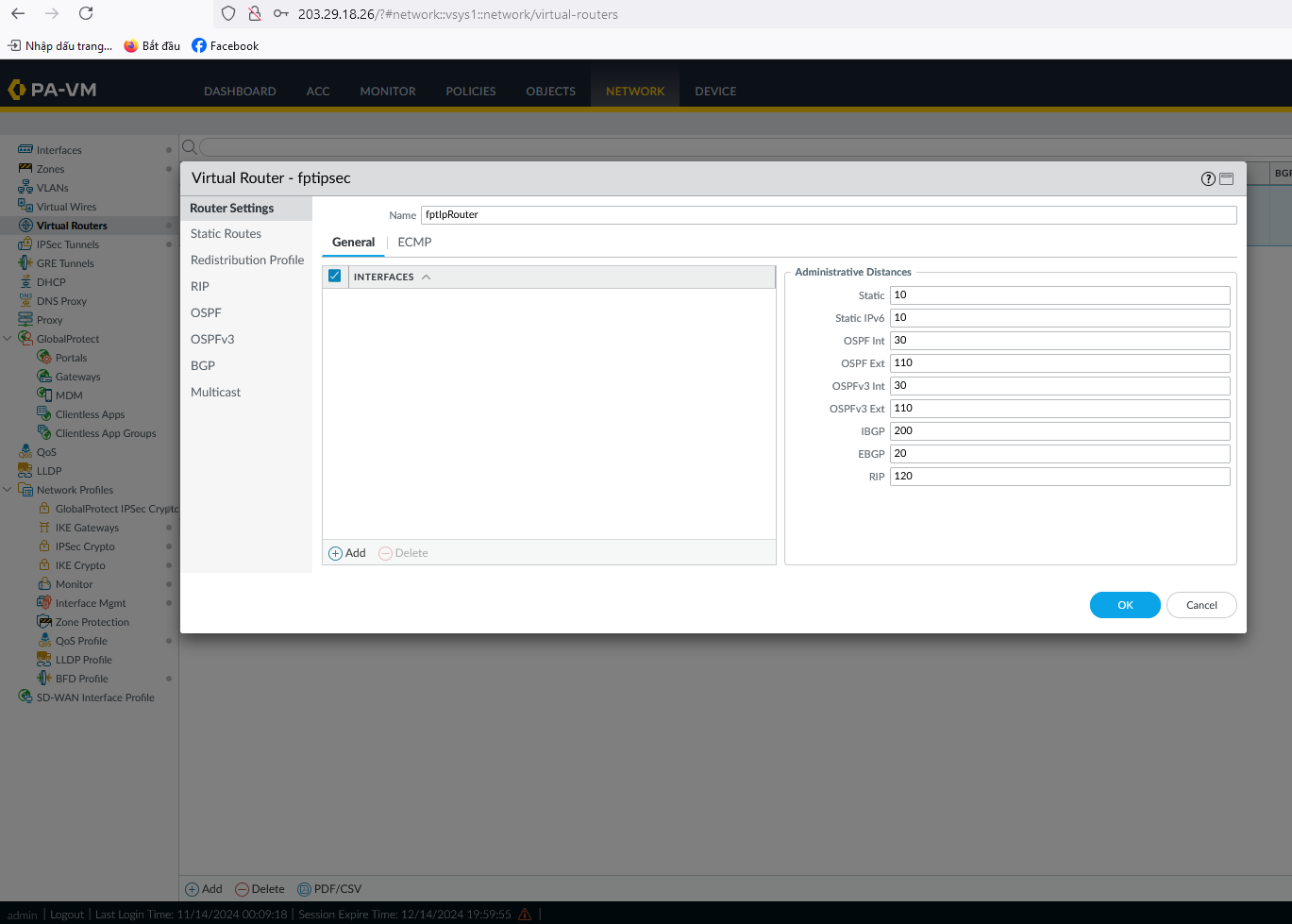

3. Create a Virtual Router and click OK.

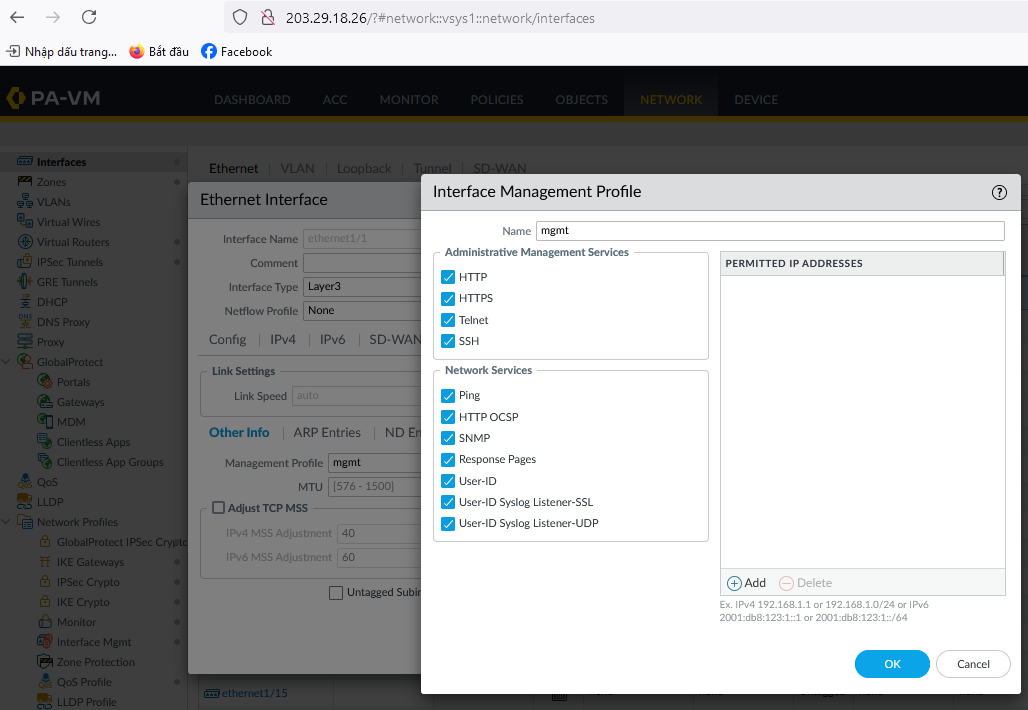

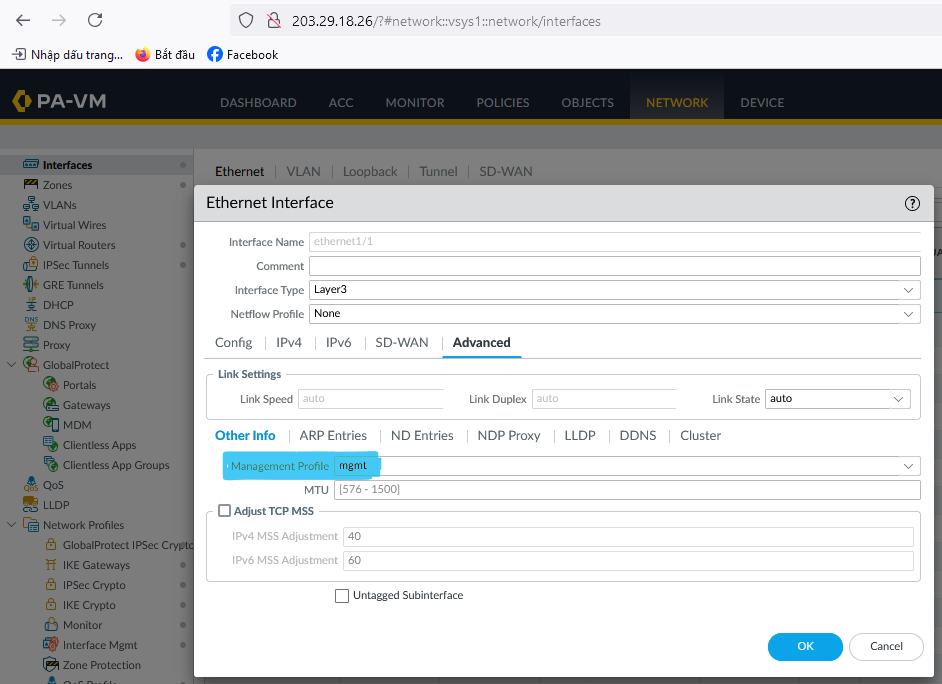

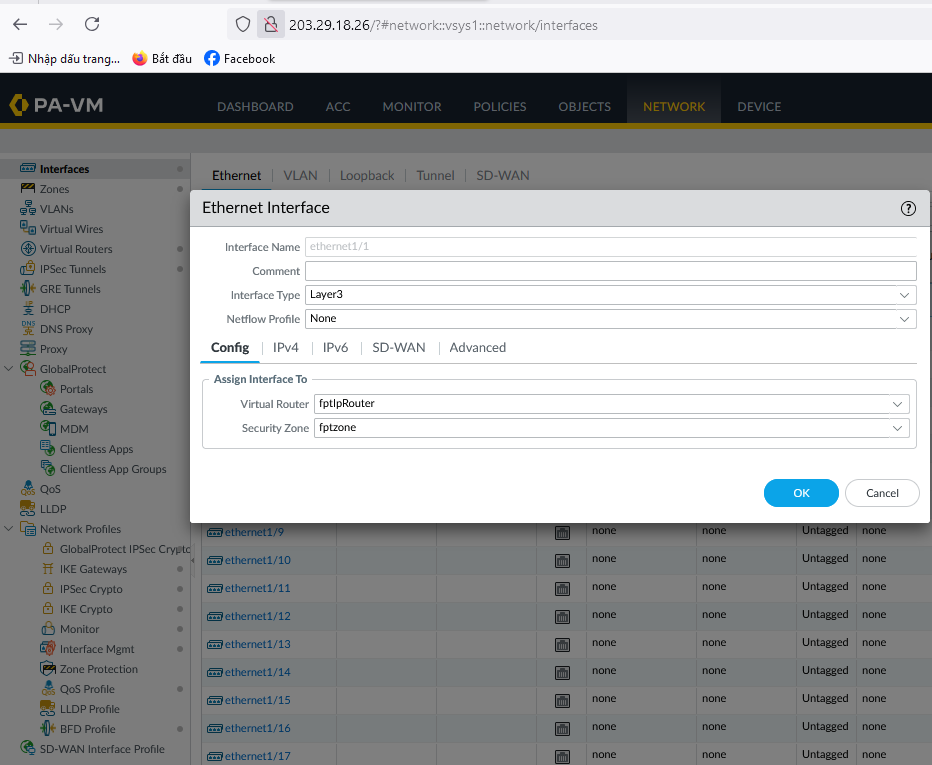

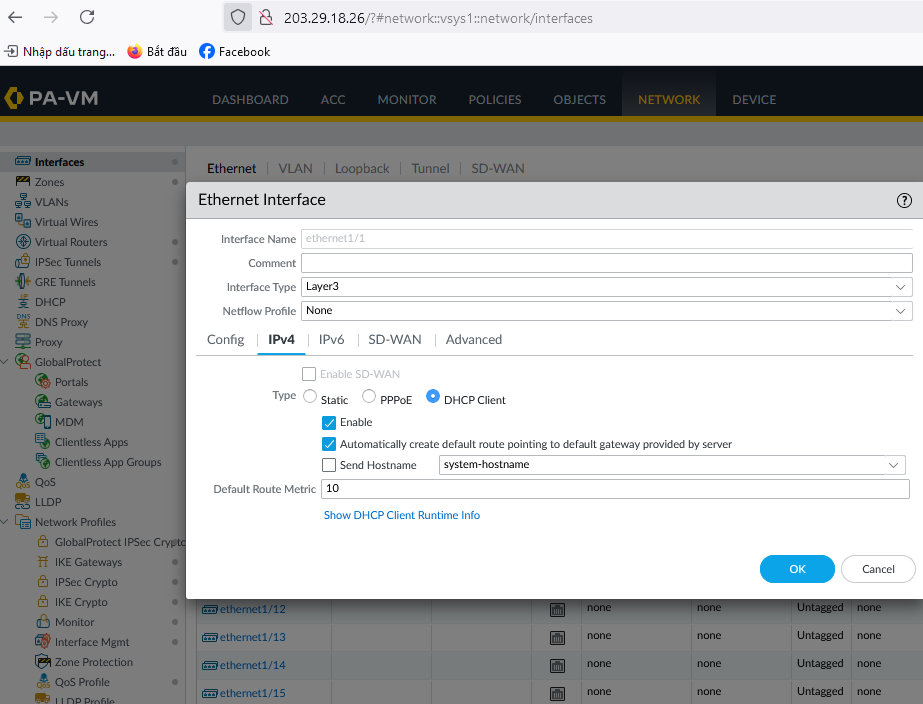

4. Create WAN and LAN interfaces (for example, ethernet1/1 and ethernet1/2).

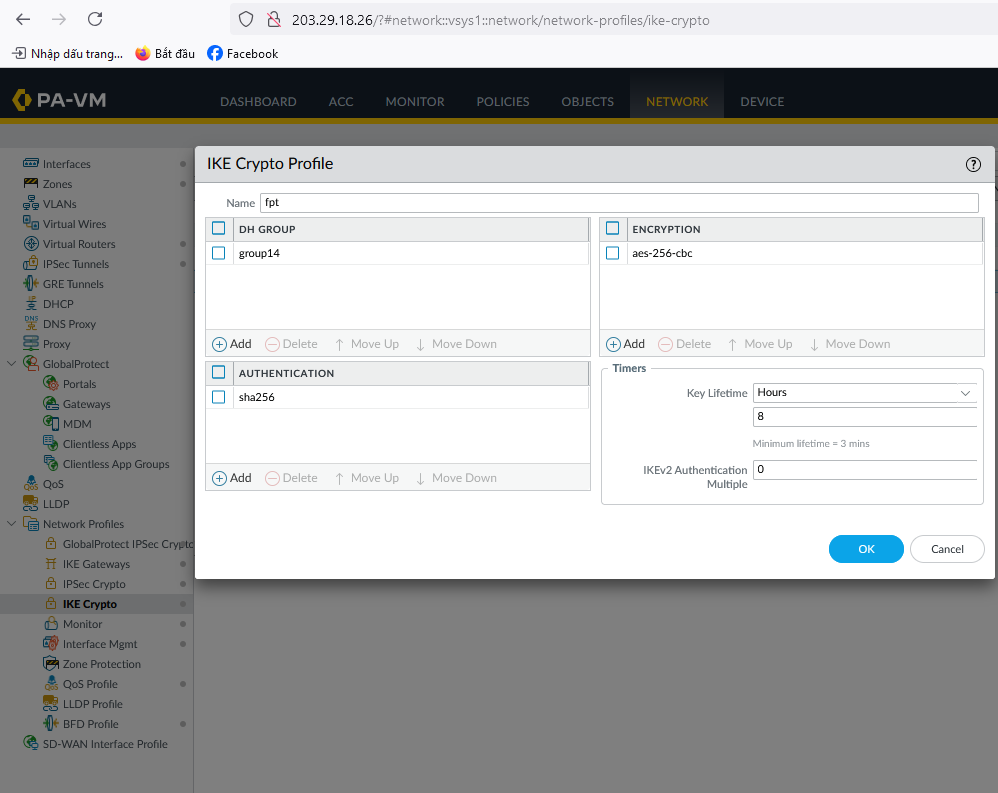

5. Create an IKE Crypto profile.

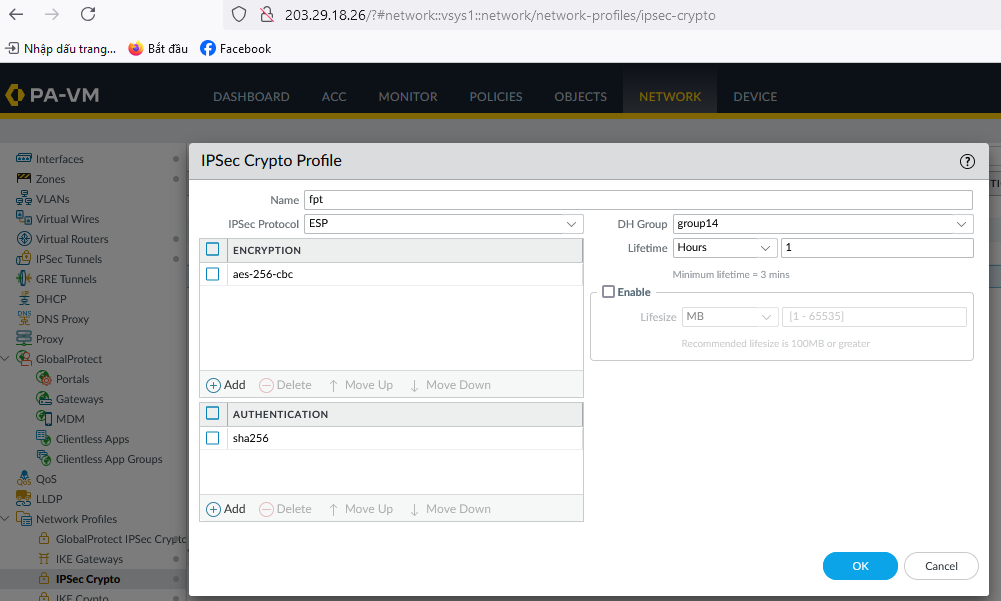

6. Create an IPSec Crypto profile.

7. Go to IPsec Tunnels:

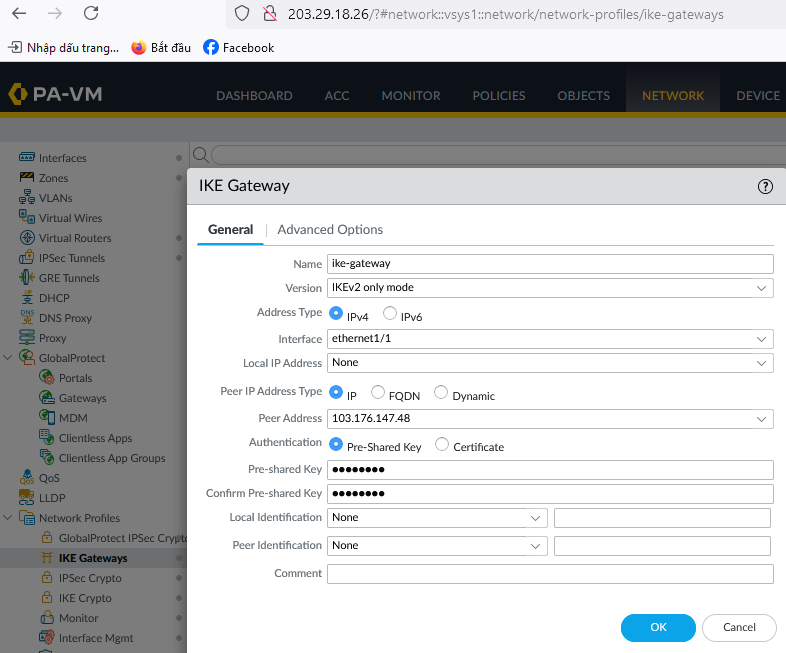

   • In the General tab, enter the Peer Address as the FPT Cloud IP from Step 1 (e.g., 103.176.147.48).

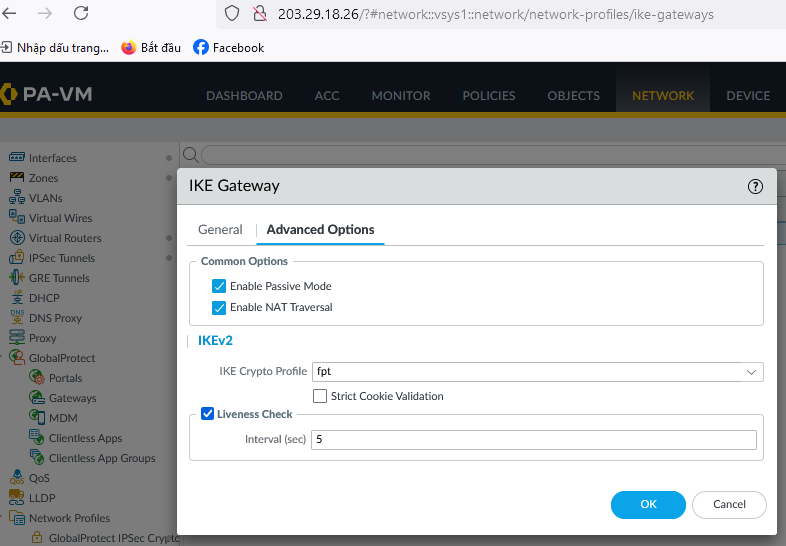

• In the Advanced Options tab, fill in the required details.

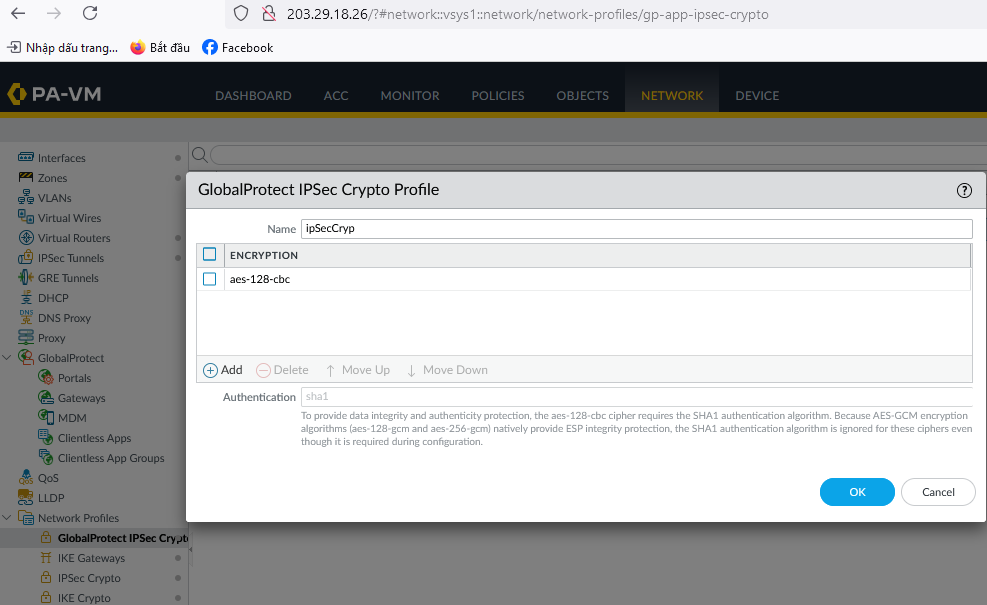

• Create a GlobalProtect IPSec entry.

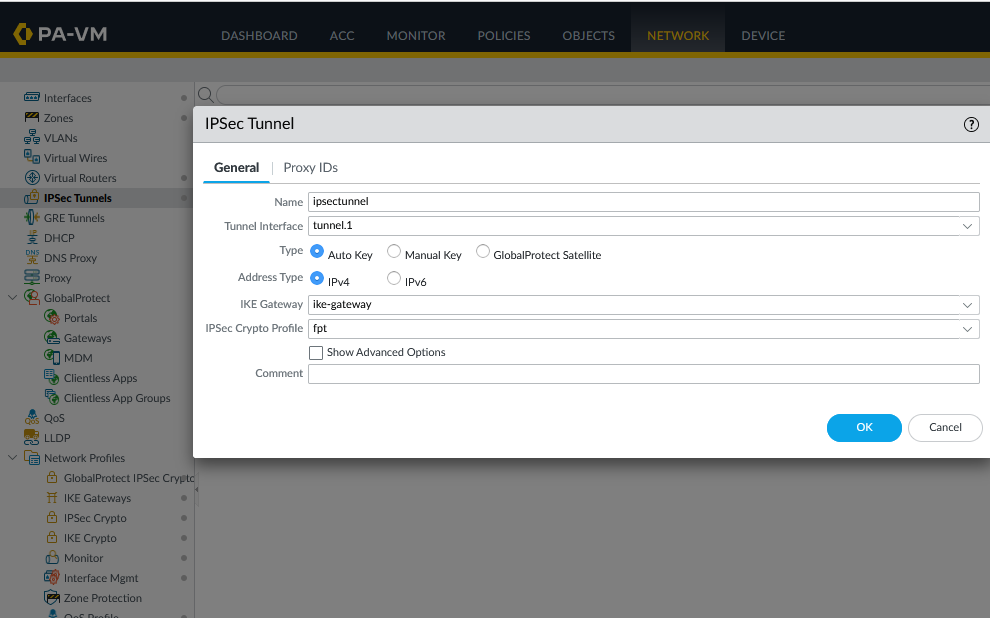

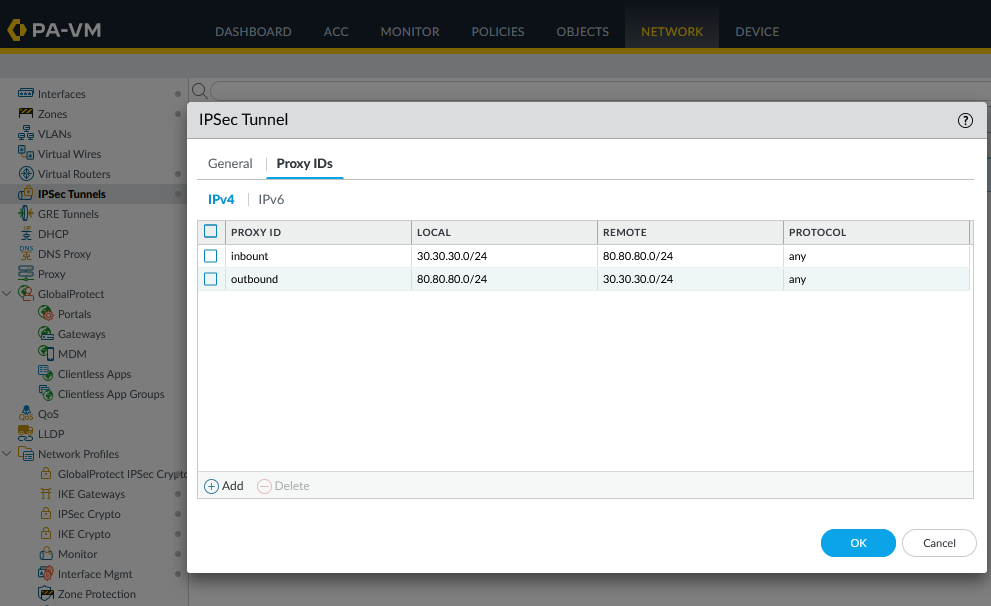

8. Create the IPSec Tunnels.

Step 3: Configure firewall and routing on Palo Alto

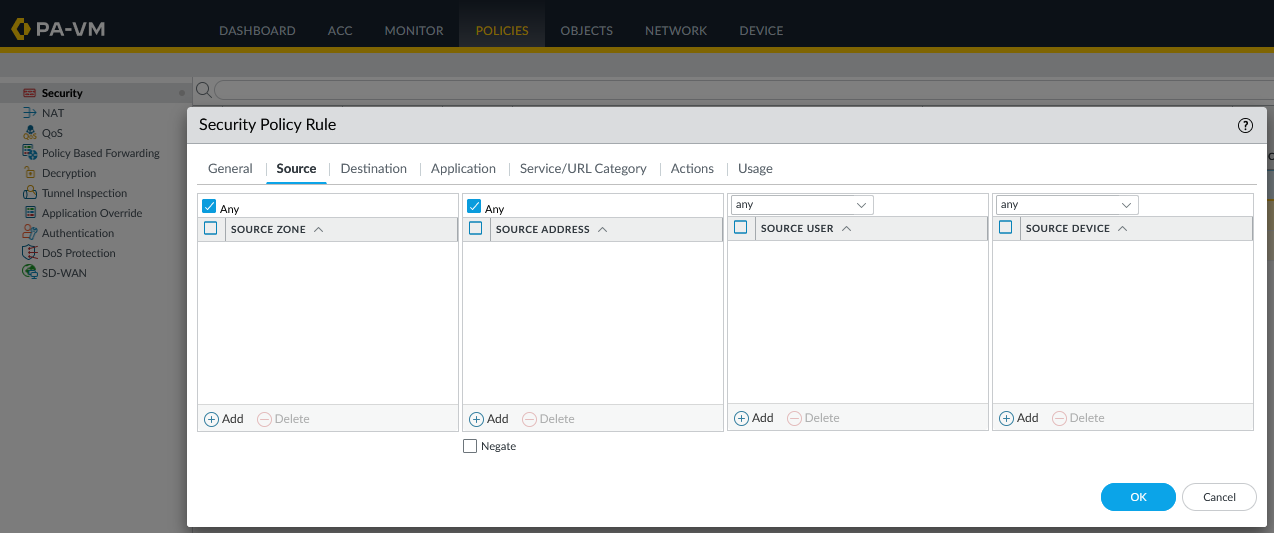

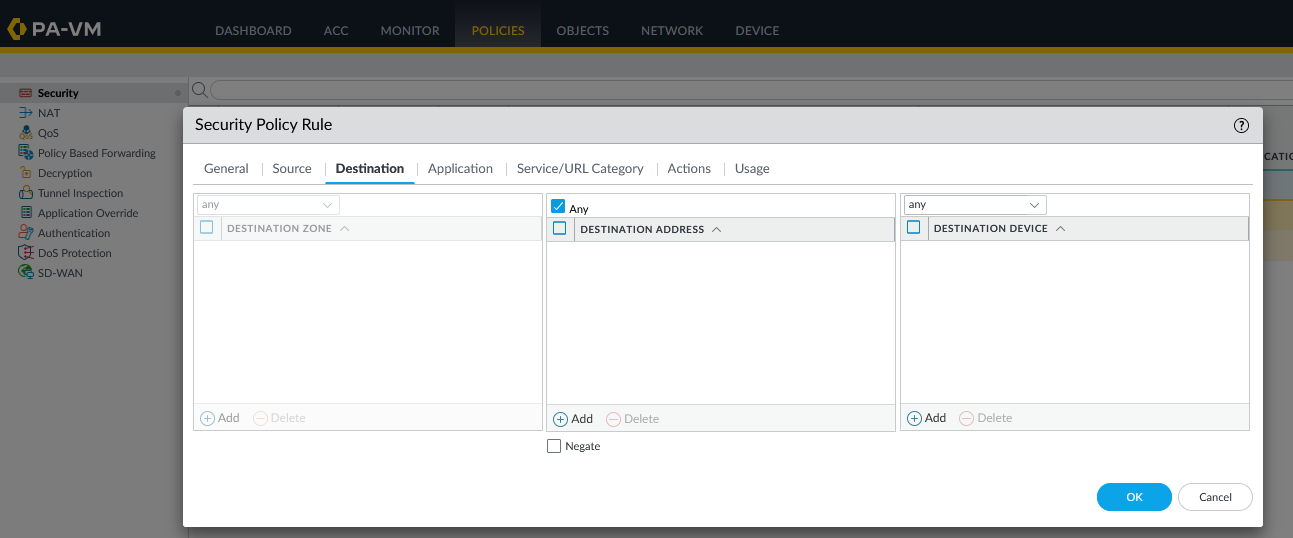

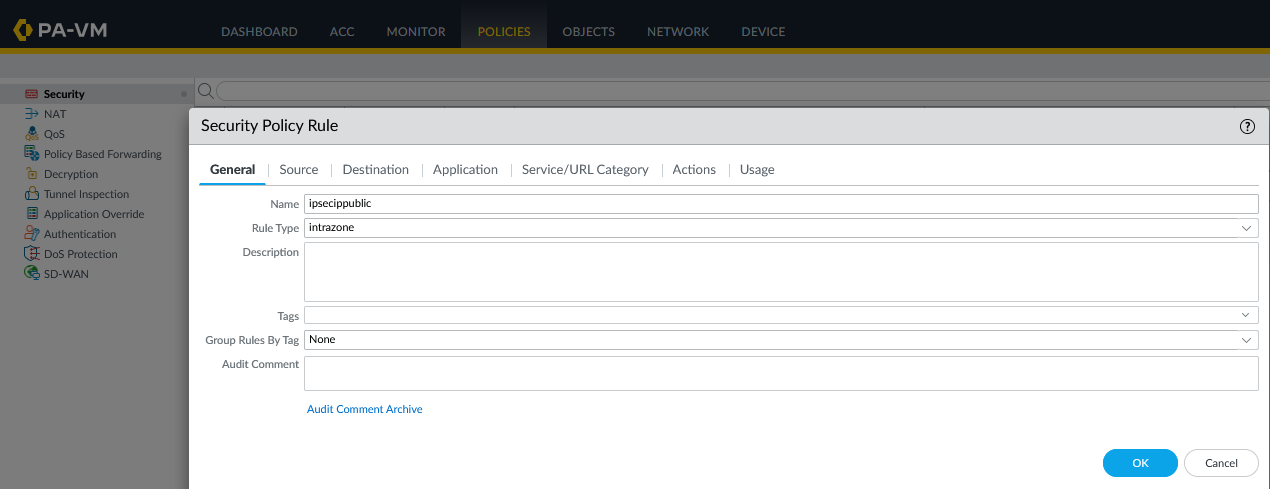

1. Open a firewall policy.

Configure the source and destination according to your environment rules.

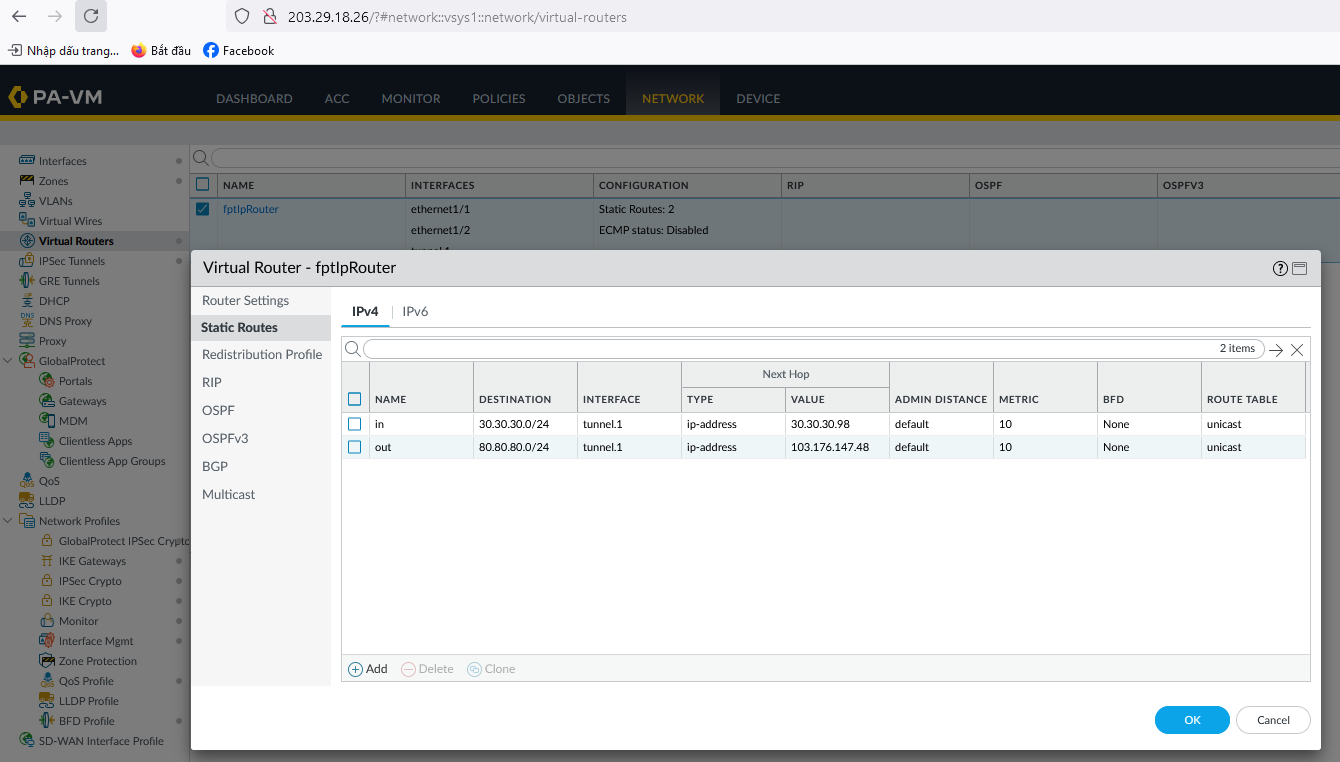

2. Configure routing between the two subnets (e.g., 30.30.30.0/24 and 80.80.80.0/24). Adjust to match your actual source and destination networks.

You can now open a terminal to test network connectivity using ping.
