ClickHouse (Logs) Sink Connector

Create a connector with Type: sink, Database: ClickHouse

Pre-condition: CDC service status is healthy

Steps to create a connector:

Step 1: From the menu bar, select Data Platform > select Workspace Management > select the Workspace name

Step 2: Under My services, select CDC service

• Note: You can also navigate directly to the CDC service by: selecting Data Platform from the menu bar > selecting CDC service > clicking a CDC service name

Step 3: On the CDC service detail screen > Select the Connectors tab > click Create a connector

Step 4: In the connector creation form, fill in the Connector Information screen:

• Name (required): connector name

Note: The connector name may contain lowercase letters a-z or digits 0-9. Spaces are not allowed; use "-" as a separator instead.

• Type (required): select sink

• Database (required): select ClickHouse(log)

Step 5: Click Next to proceed to the Properties screen

Enter the following information:

• When Manual configuration is selected — fill in:

  • Host Name (required): Hostname or IP of ClickHouse

  • Port (required): ClickHouse server port, default: 8123.

  • Database name (required): Target database the Connector will sink data into

  • Username (required): Username used by the Connector

  • Password (required): Password used by the Connector

  • Topics (required): List of topics the Connector will consume and sink data into ClickHouse, separated by ","

• When *From FPT Database Engine is selected — fill in:

  • Database (required): Select Database

  • Host Name (required): Hostname or IP of ClickHouse

  • Port (required): ClickHouse server port, default: 8123.

  • Database name (required): Target database the Connector will sink data into

  • Username (required): Username used by the Connector

  • Password (required): Password used by the Connector

  • Topics (required): List of topics the Connector will consume and sink data into ClickHouse, separated by ","

Click Test Connection to verify the connection from Workspace to the entered Database

• Converter

  • Converter key: select the key value for the converter

  • Converter key schema enable: select whether to use schema in the Converter key

  • Converter value: select the value for the converter

  • Converter value schema enable: select whether to use schema in the Converter value

Step 6: Click Next in the top-right corner to proceed to the Additional Properties screen

Fill in the following information:

• Tasks max (required): Maximum number of tasks for the connection

• Topic 1: name of the topic the Connector will consume and sink data into ClickHouse

• Table 1: name of the table listening for data changes from PostgreSQL

• Mode (required): Connector behavior when a message cannot be processed

  • None: The Connector will skip messages that cannot be sinked into the database

  • All: Error messages will be sent to the specified topic

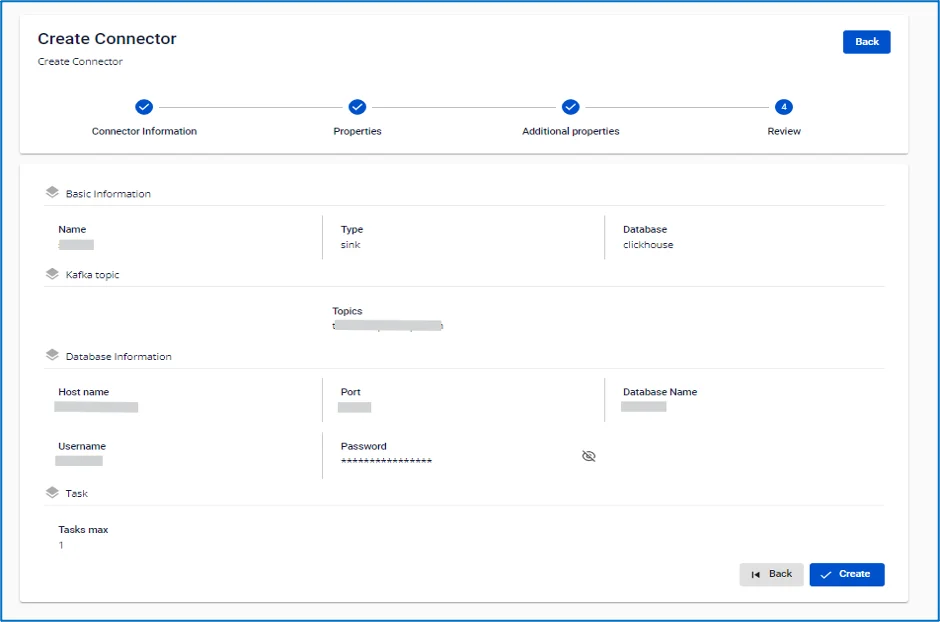

Step 7: Click Next to proceed to the Review screen

Step 8: Review the information and click Create to complete the connector creation.
