Redis Sink Connector

Create a connector with Type: sink, Database: Redis

Pre-condition: CDC service status is healthy

Step 1: From the menu bar, select Data Platform > Workspace Management > Workspace name

Step 2: Under My services, select CDC service

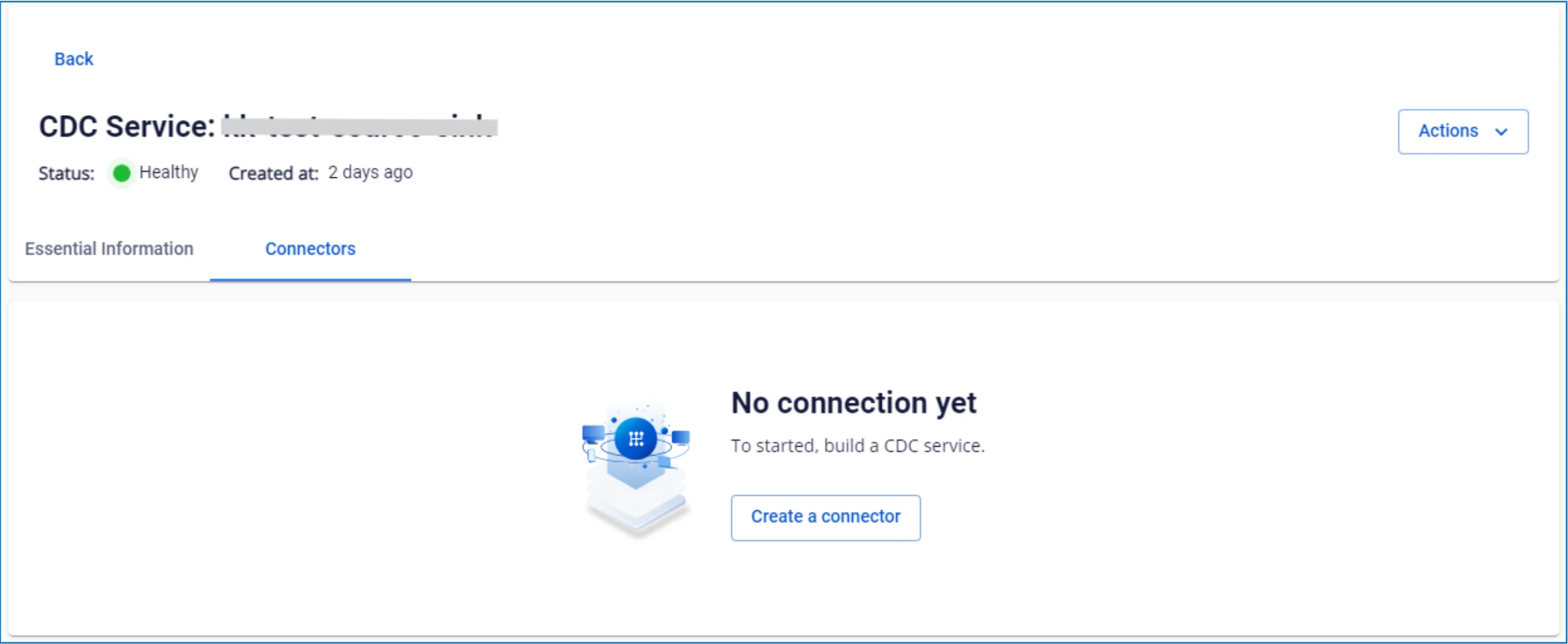

Step 3: On the CDC service detail screen > Select the Connectors tab > Click Create a connector

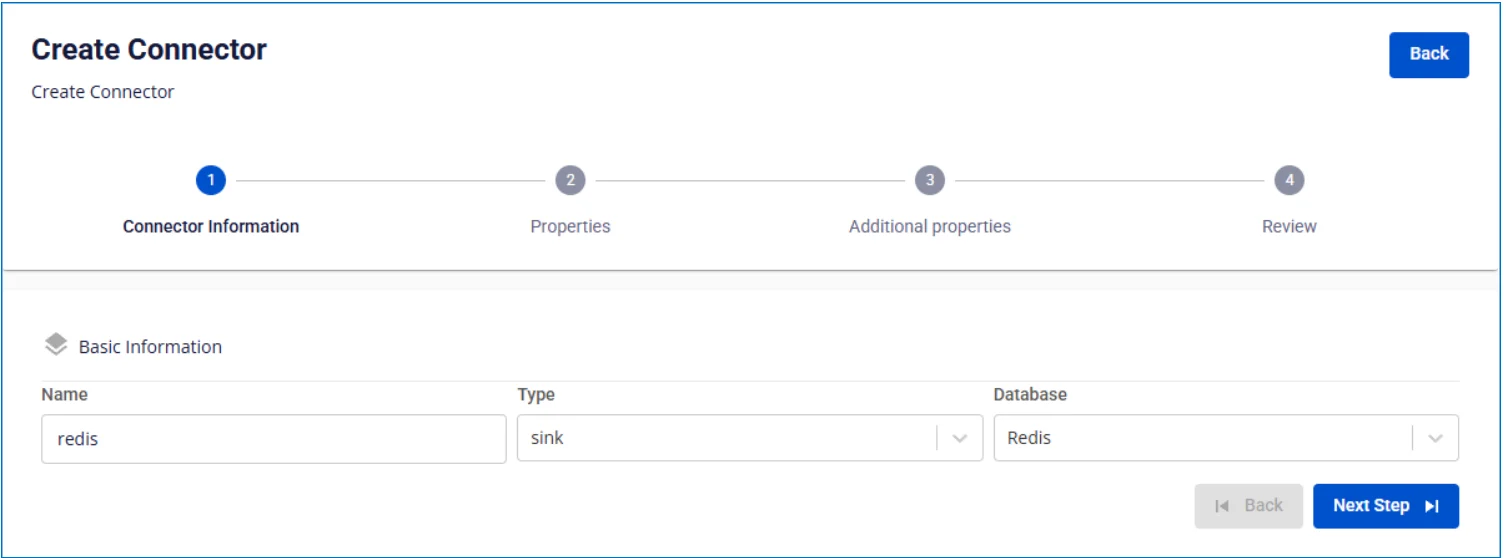

Step 4: Enter the information on the Connector Information screen:

• Name (required): connector name

Note: The connector name may contain lowercase letters a-z or digits 0-9. Spaces are not allowed; use "-" instead of a space.

• Type (required): select sink

• Database (required): select Redis

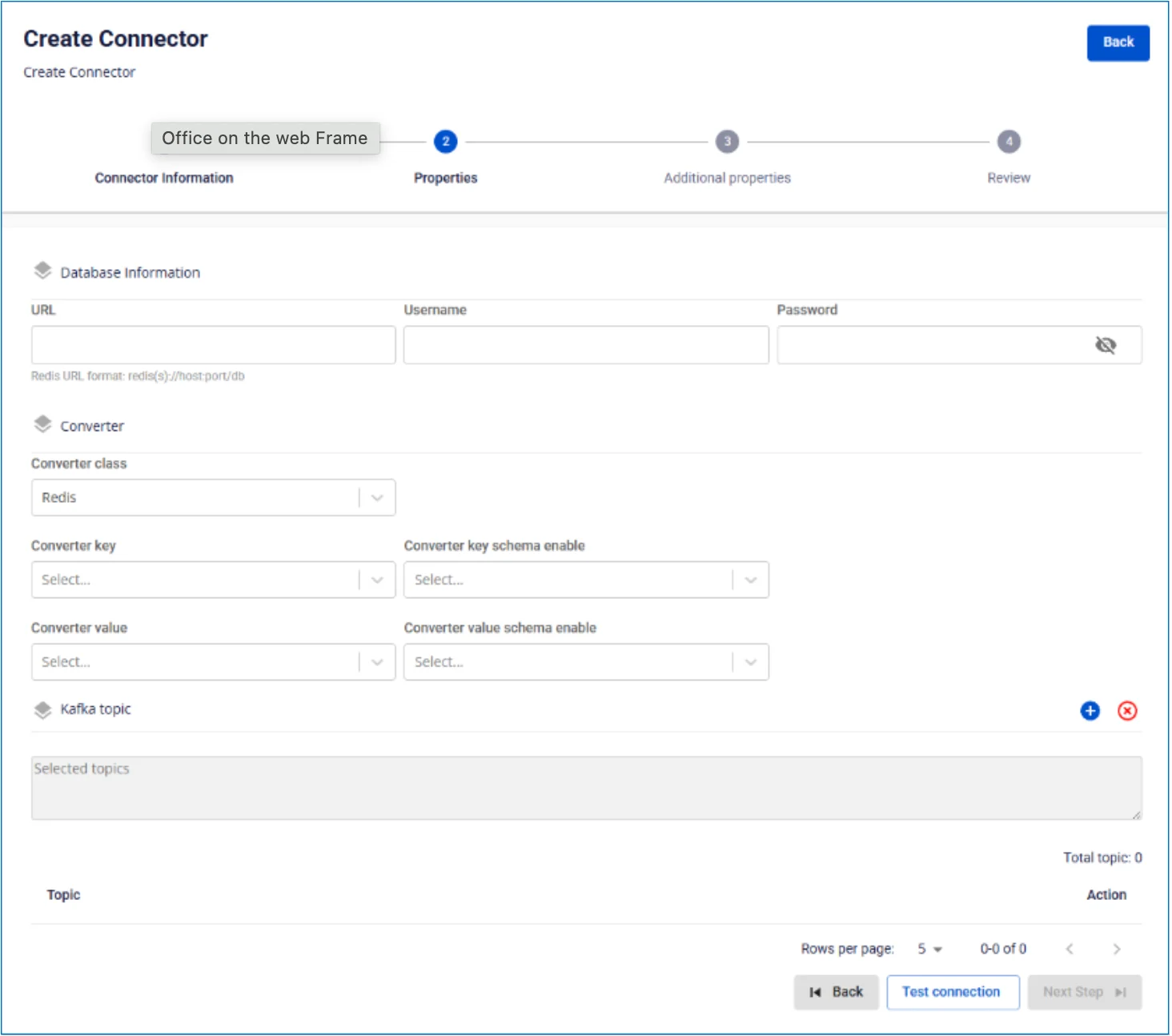

Step 5: Click Next to proceed to the Properties screen

Enter the following information:

• Database information

  • URL (required): enter the database connection address

  • Username (required): username

  • Password (required): password

Click Test connection to verify the connection from the Workspace to the entered Database

• Converter

  • Converter key: select the key value for the converter

  • Converter key schema enable: select whether or not to use a schema in the Converter key

  • Converter value: select the value for the converter

  • Converter value schema enable: select whether or not to use a schema in the Converter value

• Kafka topic

  • Topics (required): select the topics from which data is sent by the source connector

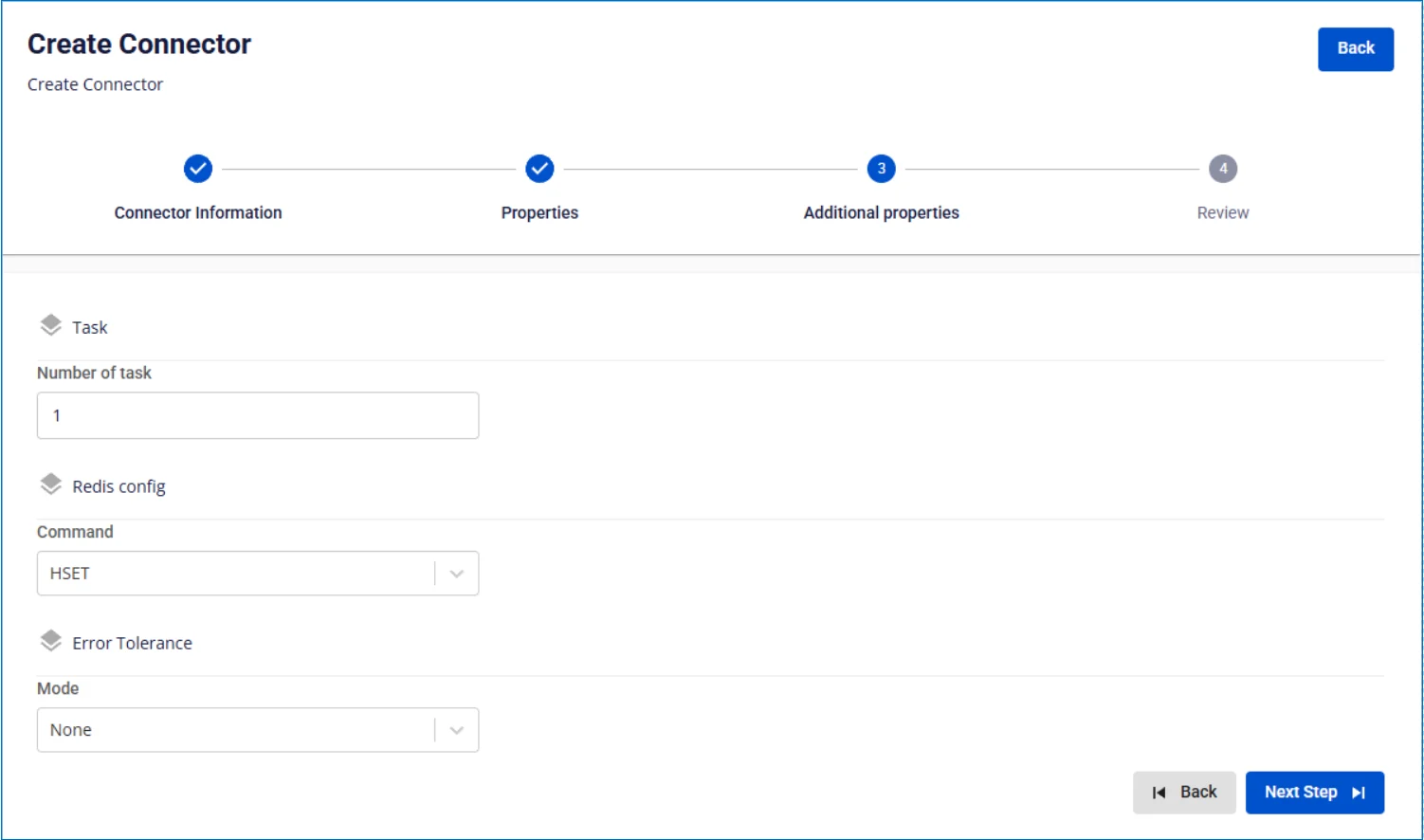

Step 6: Click Next to proceed to the Additional Properties screen

Enter the following information:

• Number of tasks: maximum number of tasks that can run in parallel

• Command: select the command for storing data

• Mode: The Connector's behavior when it cannot process a message

• None: the connector will stop processing if an error occurs

Step 7: Click Next to proceed to the Review screen

Step 8: Review the information and click Create to complete the connector creation
