Integrate ArgoCD Image Updater

This guide walks through deploying applications on ArgoCD using Image Updater. To use the Argo CD Image Updater feature, enable the service via the Portal, then configure authentication information such as secret/secret registry/Container registry.

Preparation

Step 1: Prepare the source deployment

The source deployment is a Helm chart.

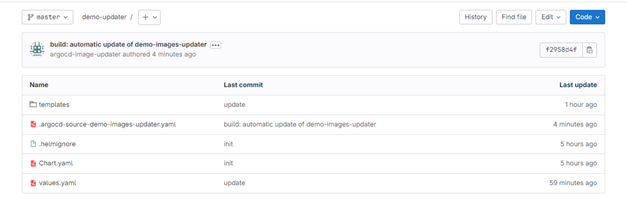

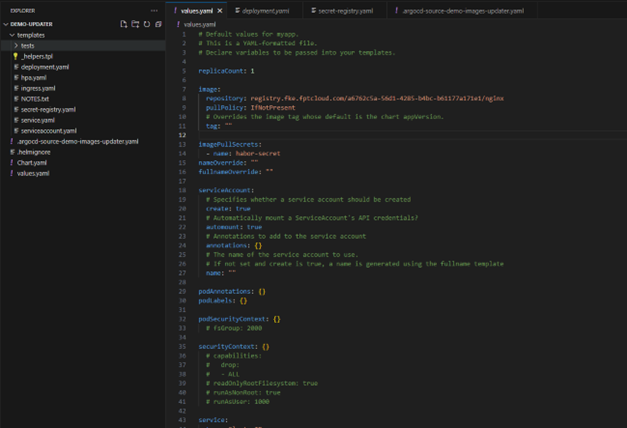

For example, to deploy an nginx service with a Helm chart to ArgoCD. Prepare the chart to deploy:

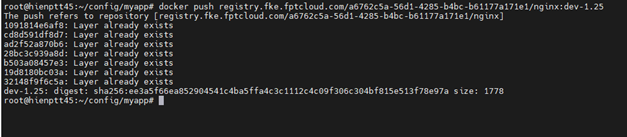

Images to deploy are managed in the container registry. This demo uses FPT Cloud's container registry.

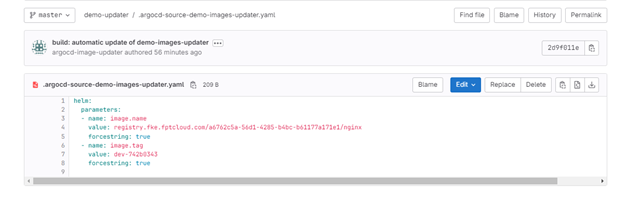

Argo CD Image Updater supports the Git write-back method to store application deployment parameters. By default, Argo CD Image Updater stores parameters in a file named .argocd-source-<app-name>.yaml at the path used with the Applications manifest configuration in ArgoCD. This allows ArgoCD to deploy the application according to parameters stored in Git.

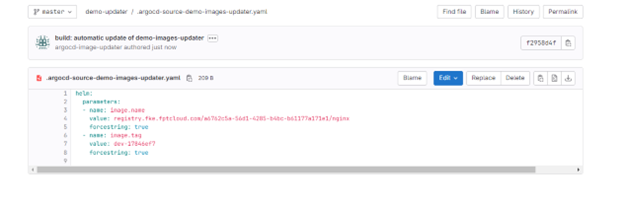

Example: Create a file .argocd-source-demo-images-updater.yaml with the following content:

helm:
  parameters:
  - name: image.name
    value: registry.fke.fptcloud.com/a6762c5a-56d1-4285-b4bc-b61177a171e1/nginx
    forcestring: true
  - name: image.tag
    value: dev-742b0343
    forcestring: true

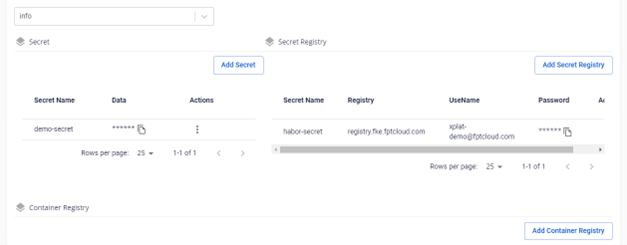

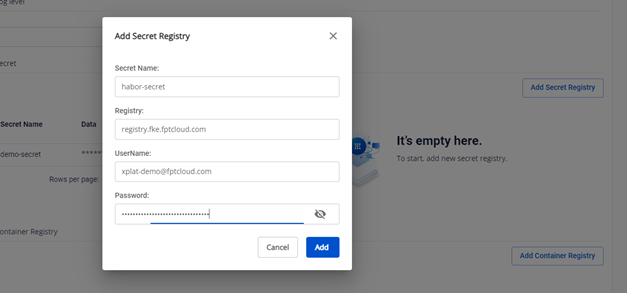

Step 2: Configure images pullSecret on the Portal

Example: Use a Secret Registry to check changes on the Container Registry. The pullSecret is named: habor-secret.

The Secret Registry will be used in application annotations.

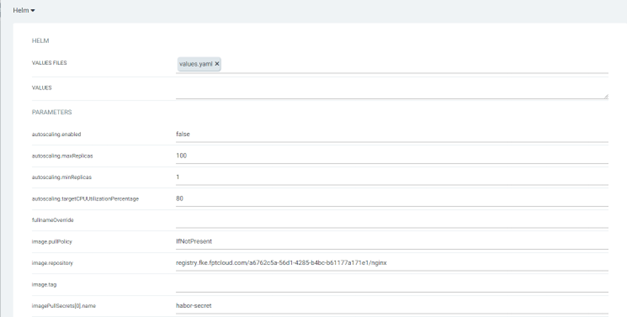

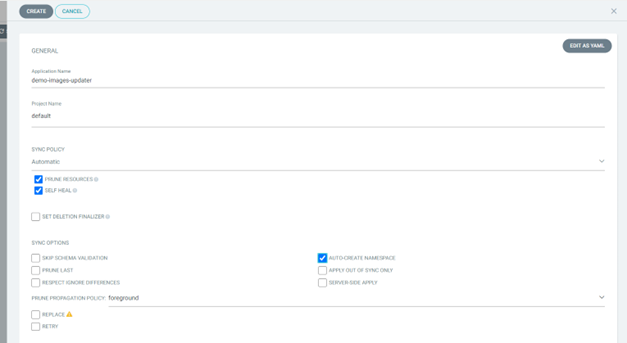

Step 3: Create applications on ArgoCD

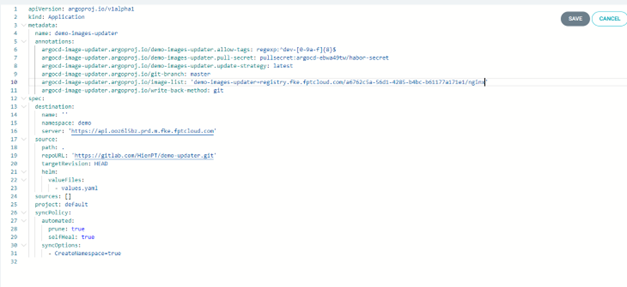

Then use the Edit as yaml feature to configure annotations:

Add annotations to use Image Updater:

Annotation	Description
`argocd-image-updater.argoproj.io/demo-images-updater.allow-tags: regexp:^dev-[0-9a-f]{8}$`	Specifies which tag names are allowed to update to the repository. Example: only allows updates with tags matching the regex "dev-" followed by an 8-digit hex string. E.g.: `dev-a5fb3d31`
`argocd-image-updater.argoproj.io/****.pull-secret: pullsecret:argocd-ebwa49tw/habor-secret`	pullSecret for ArgoCD Image Updater to check image tags on the registry. Format: `pullsecret:argocd-[argocd-id]/[Secret-registry-name]`
`argocd-image-updater.argoproj.io/****.update-strategy: latest`	Determines how Argo CD Image Updater finds new versions of images updated on the registry. Strategies: Semver (latest version respecting semantic versioning), Latest (most recently pushed tag), Digest (latest version of a tag using SHA digest), Name (alphabetical order)
`argocd-image-updater.argoproj.io/git-branch: master`	Branch to update changes in the manifest
`argocd-image-updater.argoproj.io/write-back-method: git`	Method to update image changes
`argocd-image-updater.argoproj.io/image-list: =registry.fke.fptcloud.com/a6762c5a-56d1-4285-b4bc-b61177a171e1/nginx`	List of images to track for updates
