Integrate OIDC for account management

This guide walks through integrating KeyCloak with ArgoCD to authenticate application users. You will create a client in KeyCloak and configure ArgoCD to use KeyCloak for authentication, using groups configured in KeyCloak to define user permissions in ArgoCD.

Step 1: Create a Client in KeyCloak.

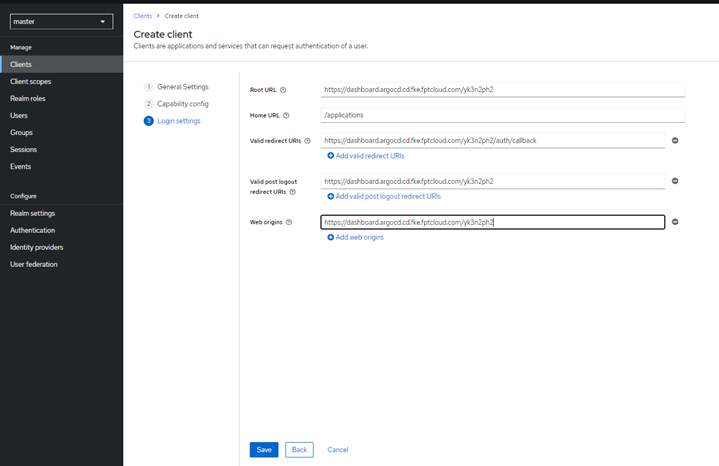

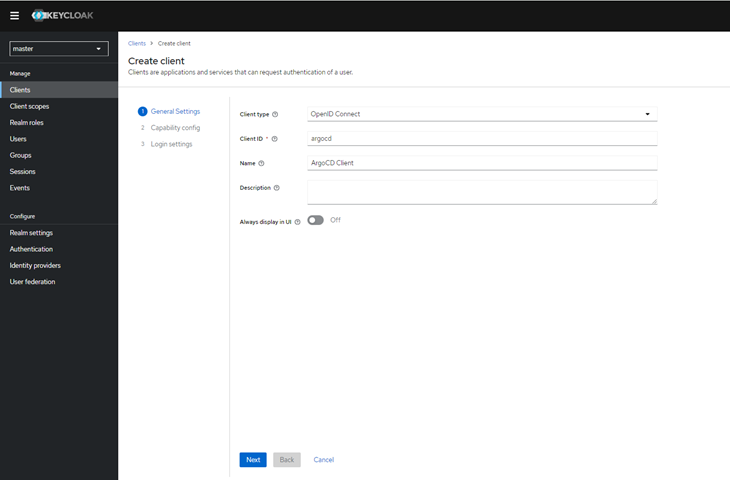

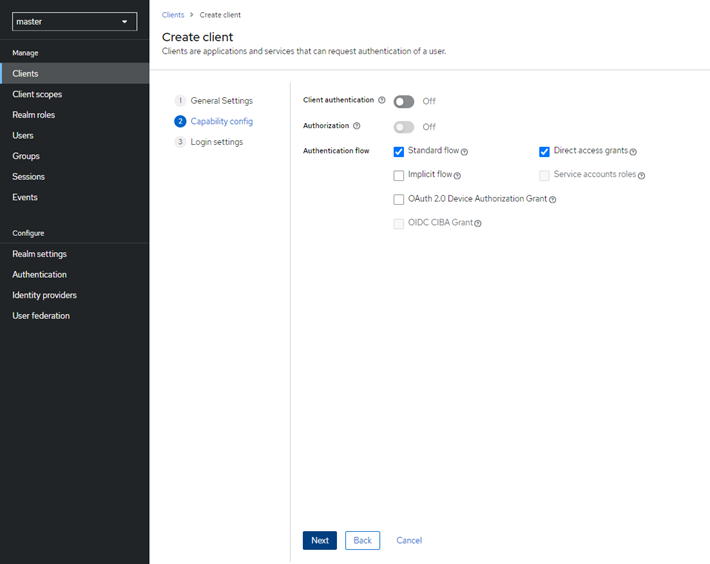

Log in to the KeyCloak server > Select the Realm to create a Client > Create Client:

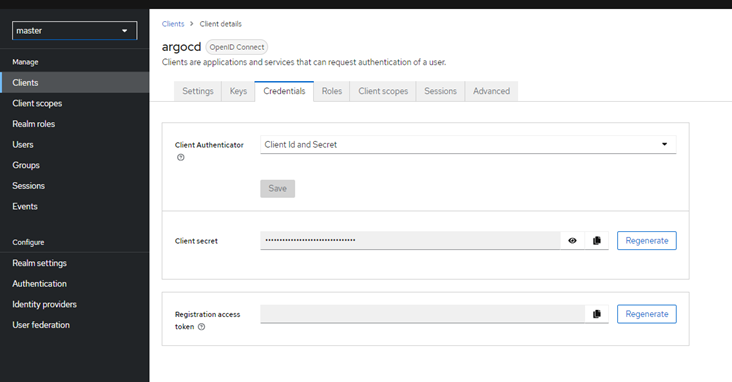

Click Save > Credential. The Client secret is used to configure information on FPT Cloud Portal.

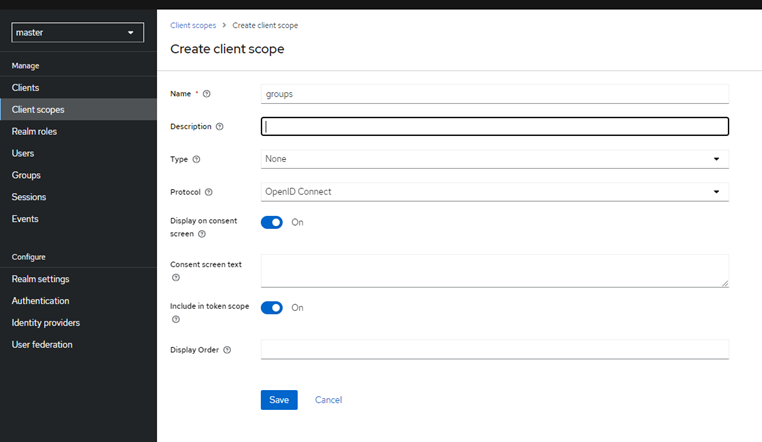

Step 2: Configure Group Claim by creating a new Client scope:

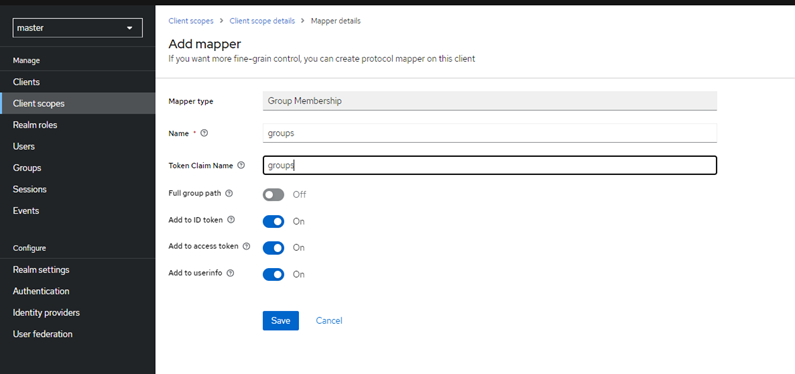

Click Save to create the Client Scope. In the Mapper tab > Configure a new mapper > Group Membership:

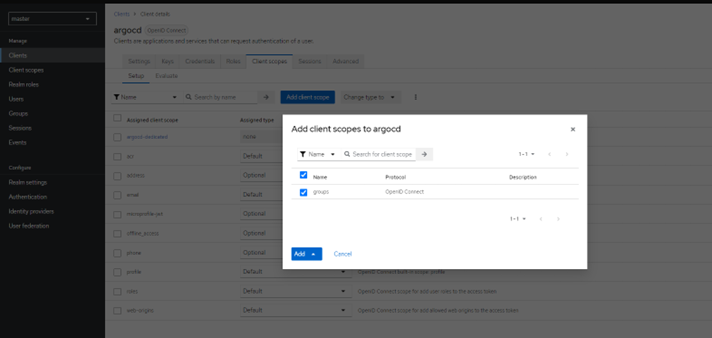

Step 3: Configure the groups scope in the Client:

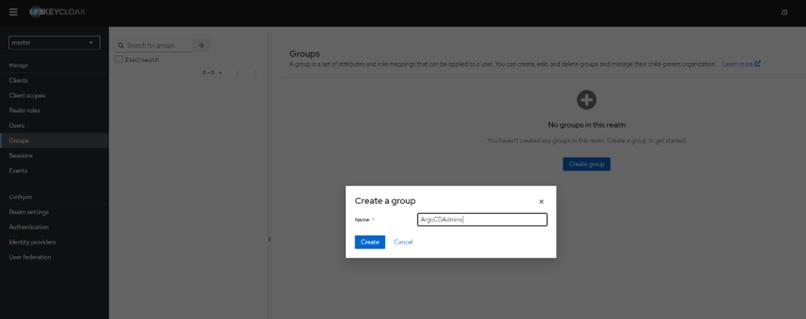

Create a group:

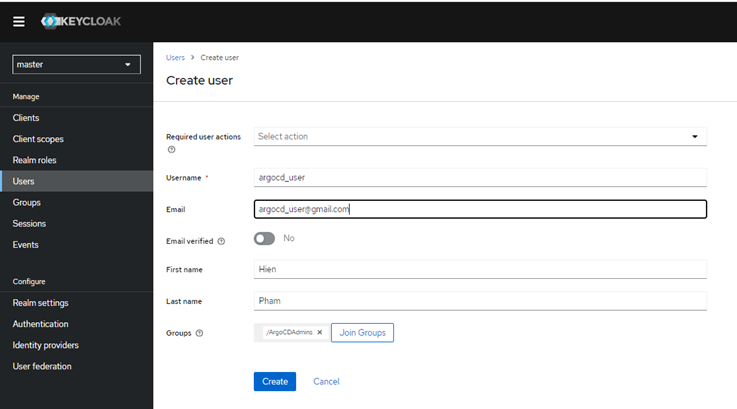

Create a User and add to the group:

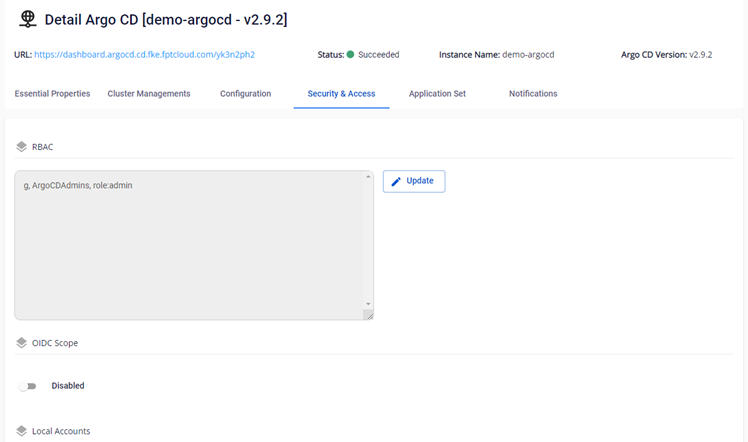

Step 4: Configure ArgoCD Policy.

Grant admin/readOnly permissions to the user group:

g, ArgoCDAdmins, role:admin
g, ArgoCDAdmins, role:readonly

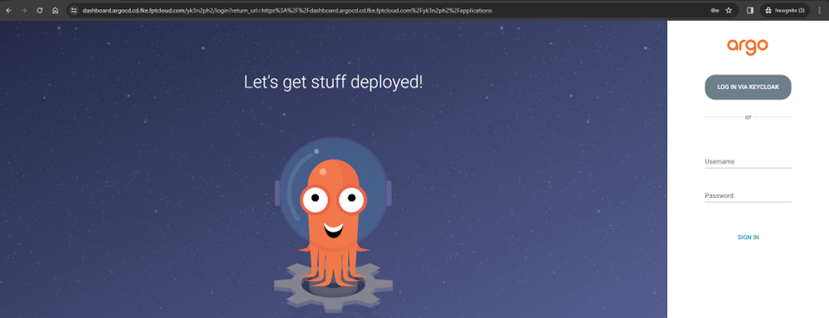

Step 5: Log in to ArgoCD via KeyCloak OIDC Authentication:

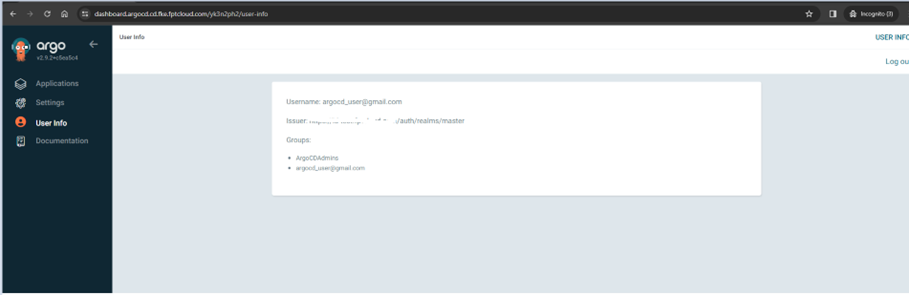

Result after logging in via KeyCloak:
